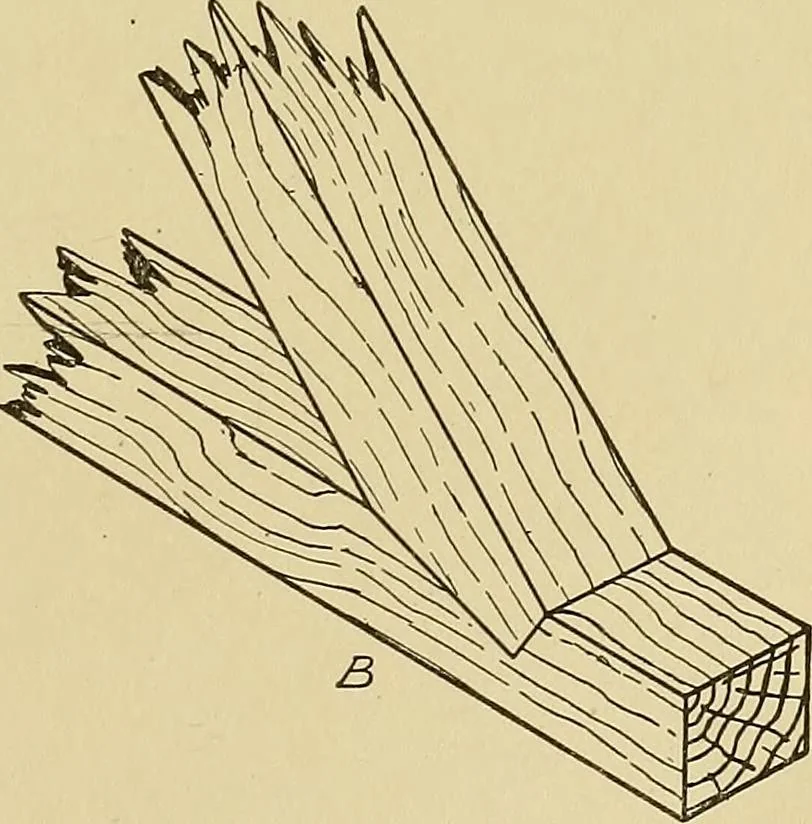

Fig. 40. Special Types of Square and Oblique Butt Joints This gives much additional strength to the joint, especially in thecase shown at B, where there may be a tendency for one piece toslide along the other. 59 50 CARPENTRY Mortise-and-Tenon Joint. From the modified butt joint it isonly a step to…
