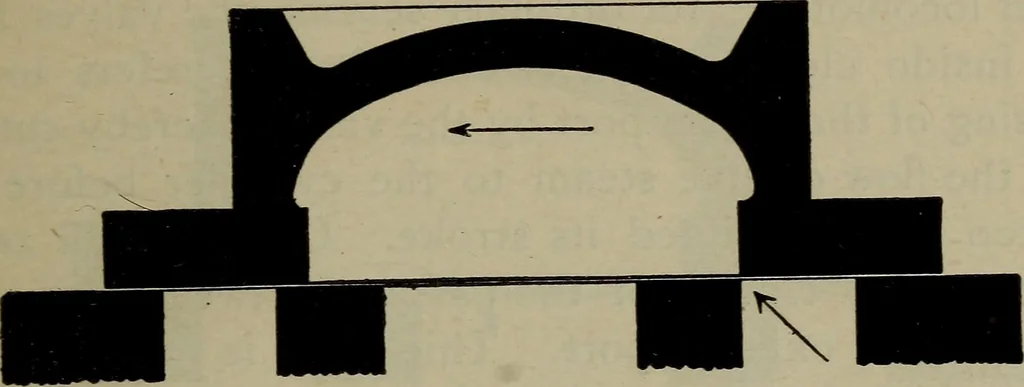

weenthe lines O P. Inside lap, frequently referred to asexhaust lap, is that portion of the valve that overlapsthe two bridges of the valve seat when the valve standscentral, and is shown at A and A, Fig. 59. VALVES AND VALVE GEAR 121 Inside clearance, sometimes called exhaust lead, isthe space… … Figure 55 i larch is slightly greater than the distance between theinside edges-of the steam ports, so that it does notentirely cover them when in its central position.Inside clearance is shown at B and B, Fig. 60. Thepurpose of inside lap is to delay the release of the
