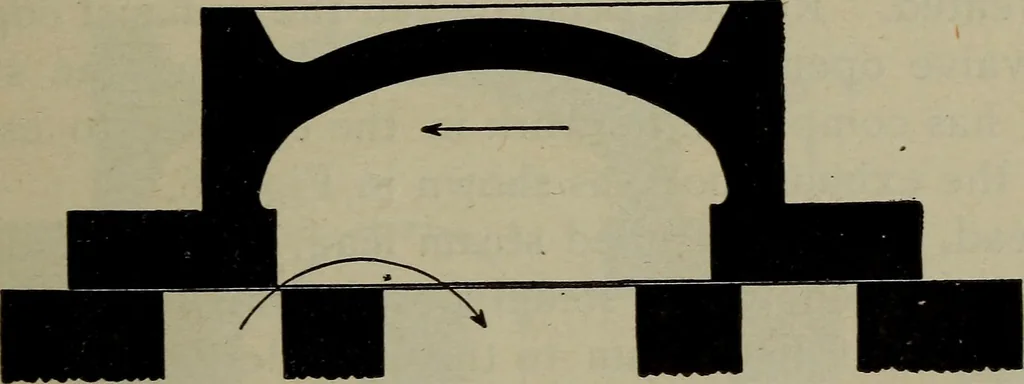

Figure 55 i larch is slightly greater than the distance between theinside edges-of the steam ports, so that it does notentirely cover them when in its central position.Inside clearance is shown at B and B, Fig. 60. Thepurpose of inside lap is to delay the release of the … Figure 56 steam and to hasten compression. The amount ofinside lap is small, seldom exceeding J& of an inch,and for fast passenger engines it is better to havenone, as it causes the engine to be quicker. The pur-pose of inside clearance is exactly the opposite to thatof Inside lap. It hastens…
