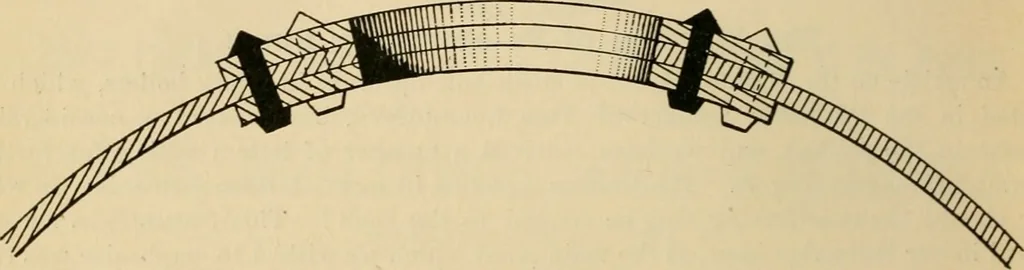

outside; this being, in our judgment, the best way toarrange the re-enforcing material. It will be seen that in order that the shell may freeitself from the ring as shown, it will be necessary to shear all the rivets that lie on oneside of the center line of the boiler. That is, it will be… … Fig. 2.—Sectional View of Ring, before Failure. that with the material disposed in this way, each rivet must be sheared twice ; whereas,in case the ring is made in a single jiiece, and secured to the shell either inside or out-side, the rivets will only have to be single sheared. Referring back to…
