Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 208

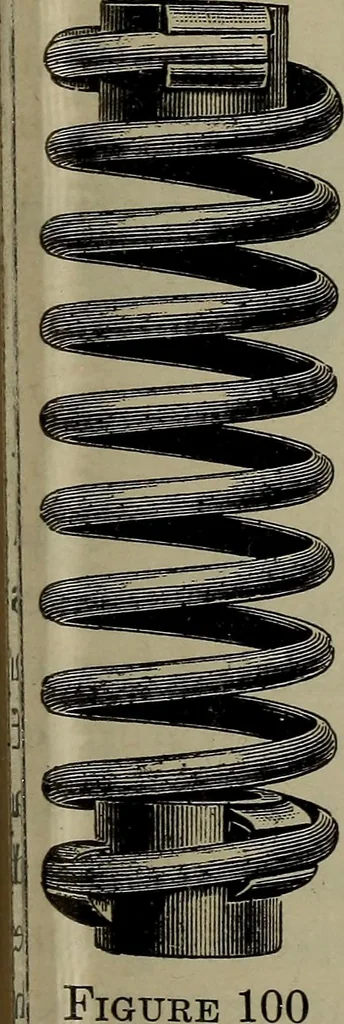

hin the com-pass of the drum, and the device isapplicable to almost any make of engine,whether of high or low speed. Somemakers of indicators attach the reducingwheel directly to the indicator, thus pro-ducing a neat and very convenient ar-rangement. Fig. 102 shows the indicatorcomplete, with… … Figure 99 Figure 100 208 LOCOMOTIVE ENGINEERING engine builder, or purchaser either, should be satisfiedwith the performance of a new engine until after it hasbeen accurately tested and adjusted with the indicator.The main requirements in these connections are thatthe holes shall not be drilled…
Locomotives
