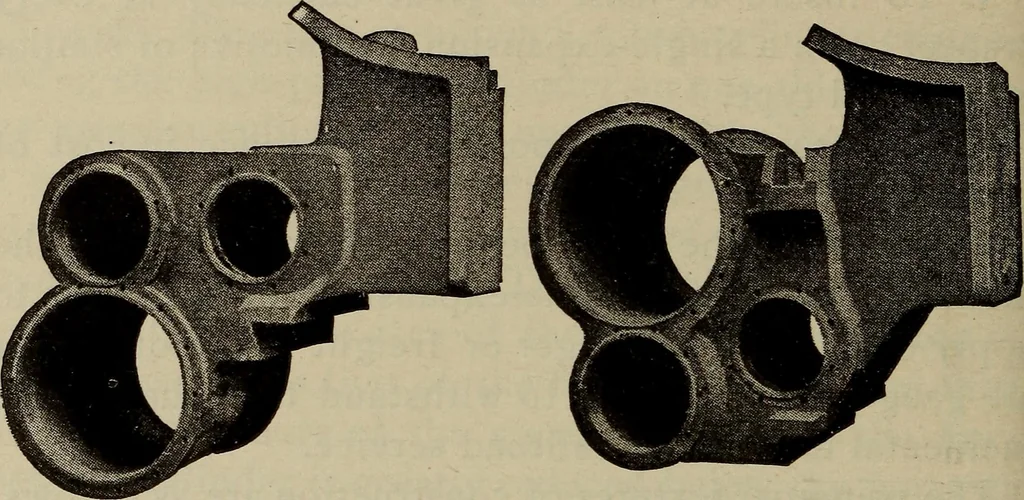

lly ontop, as shown in Fig. 121. The former (Fig. 120) is used in eight-wheel Of 264 LOCOMOTIVE ENGINEERING American type passenger locomotives, and in ten-wheeled locomotives, while the latter (Fig. 121) isused in Mogul, Consolidation and Decapod locomo-tives; for the various other classes of… … Figure 120 Figure 121 cylinders is of the piston type, working in a cylin-drical steam-chest located in the saddle of the cylindercasting between the cylinders and the smoke-box, andas close to the cylinders as convenience will permit. As the steam-chest must have the necessary steampassages cast…
