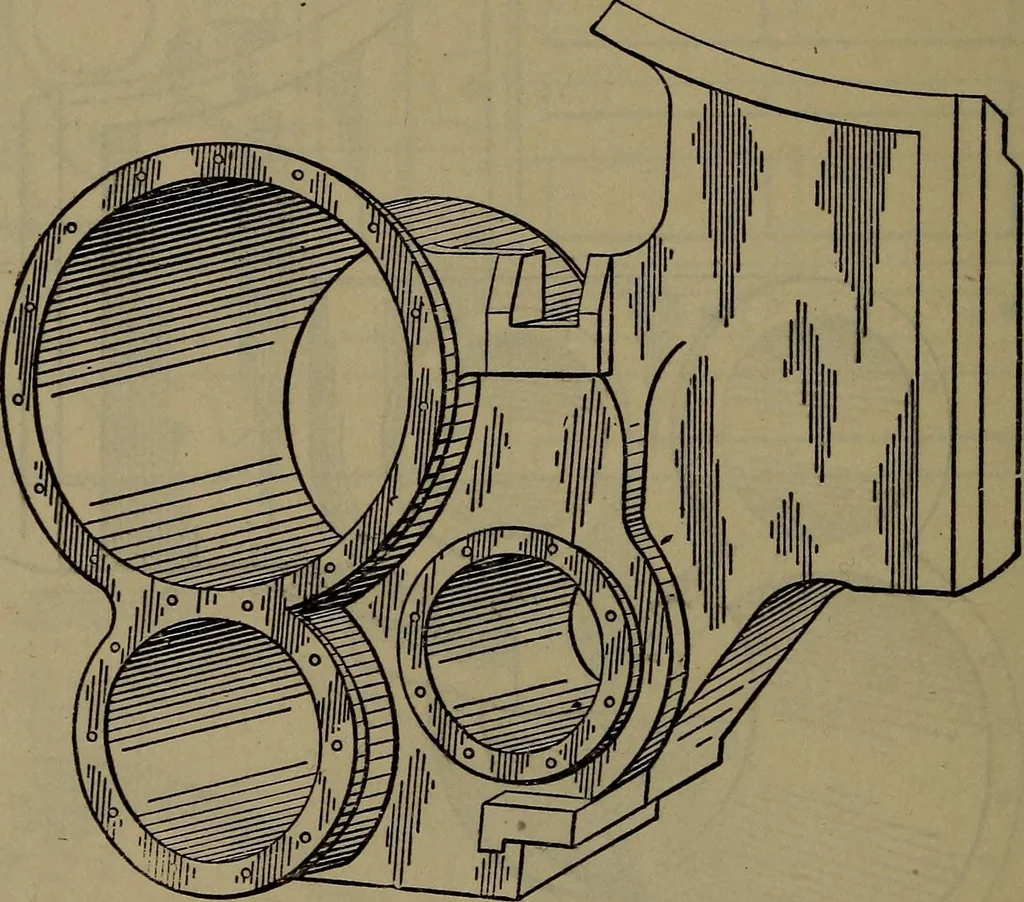

ting-rod balanced vertically, what will be the effect? A. It will run with a series of horizontal jerks. Q. If balanced horizontally, what will be the effect? 202 LOCOMOTIVE CATECHISM. A. That which is ordinarily observed; there will be a seriesof vertical movements corresponding to the upward and… … Fig. 116. Cylinders, Valve Chest and Half-saddle, VauclainConsolidated Compound. frames, and each having its own connecting-rod; so that whenone rod goes up the other goes down, every pound that goesup at a given velocity on one side being balanced by anotherpound at the same velocity in the other…
