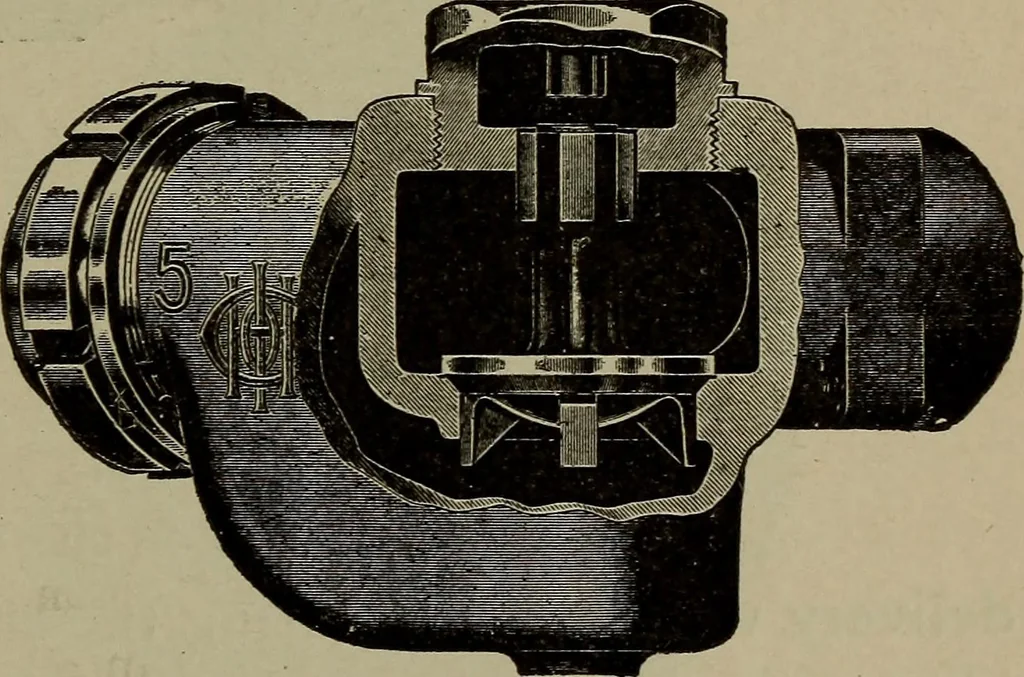

ose f inch, I II tt Pipe Connections. For steam, suction and deliveryconnections, see above table. Place a globevalve in thesteam pipe fora starting valve,and anothervalve in suctionpipe for a watervalve. If the boilerwasher is to liftwater, there Figure 176b should be an Sectional View of the… … 386 LOCOMOTIVE ENGINEERING under a head, open the water valve in the suction pipeand then open the valve in the steam pipe. * Vary the temperature of the delivery water by regu-lating the steam and water supplies with either thestarting or water valve or both. If the boiler washer lifts the water,…
