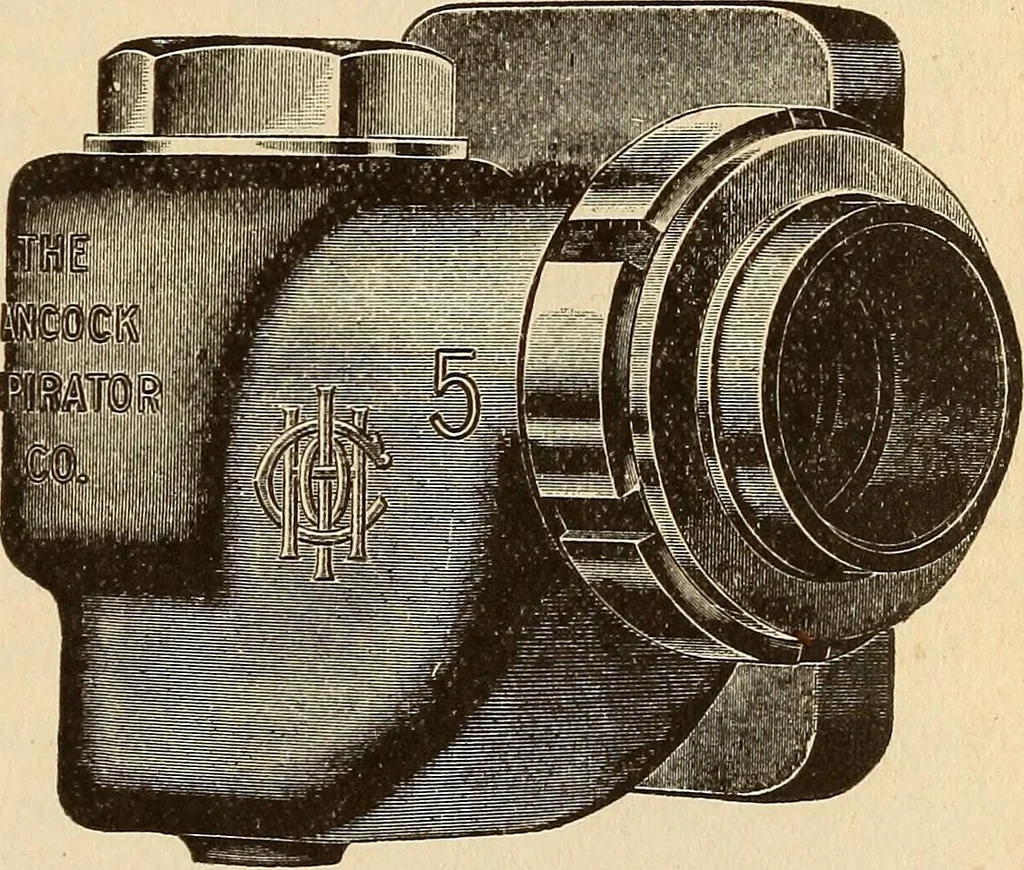

the feed, turn the regulating wheel to the right. Regulating. To use the patent heater attachment,lift the connecting rod, part No. io6, until disengagedfrom the stud in the lever, part No. 131, then drawback the connecting rod to close the overflow valve,part No. 117.Draw the leverback to the… … Figure 176 aThe Hancock Main Boiler Check Valve in the position described all the steam blowing backwould pass through the lifter nozzle. Thereby theclosing of the main steam valve at the boilerbecomes unnecessary. Type Cojnposite. The Hancock composite inspirator.Fig. 175, consists of two separate…
