Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 393

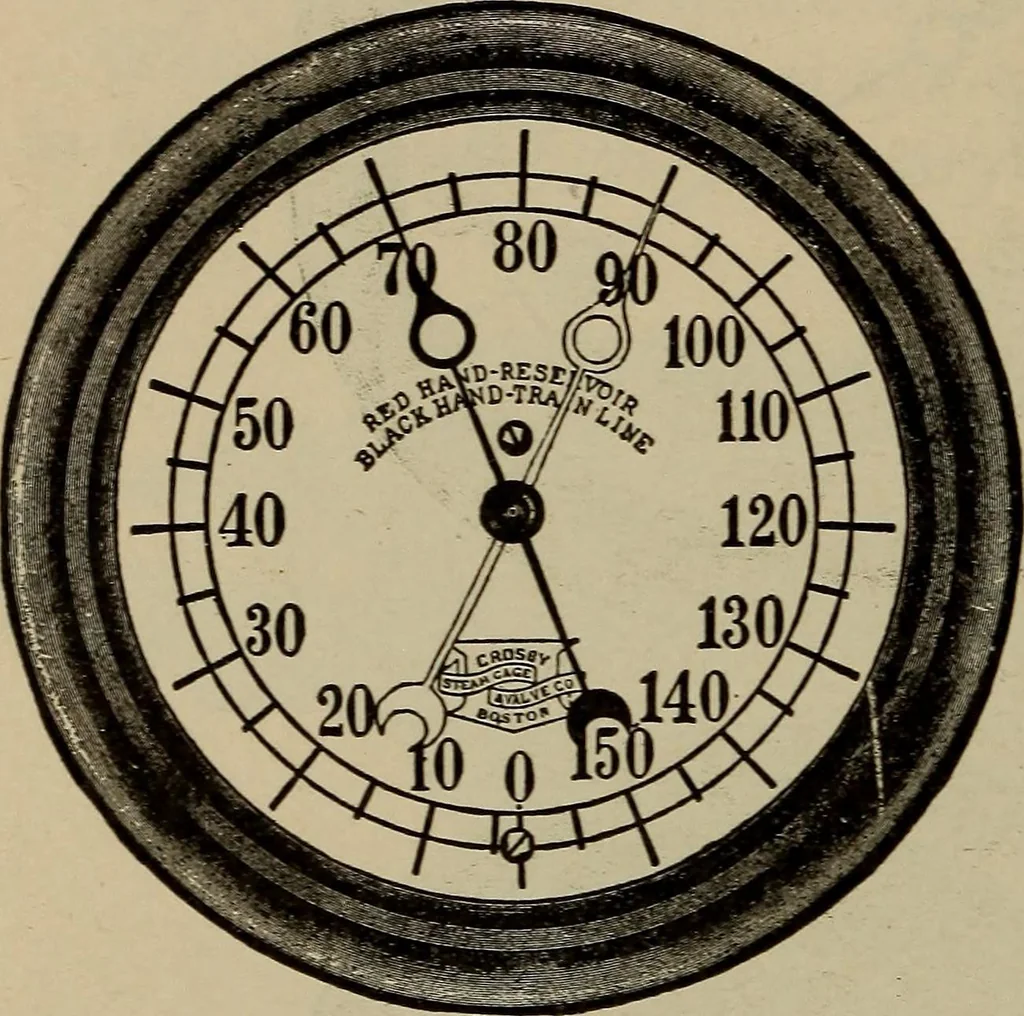

asured by them,especially where there is liability of the admission ofsuch steam into the tube springs. In such case thesoldering material may soften, and under the highpressure be forced out, causing a leak and the destruc-tion of the gauge. In the Crosby improved locomotive pressure gauge,the… … Figure 179Crosby Duplex Gauge f INJECTORS, STEAM GAUGES, ETC. 2*9 In addition to the improved Bourdon tube spnngsso employed, careful attention has been given to thelever mechanism which transmits the free movementsof these Bourdon tube springs to the index. Theyhave been designed and constructed…
Locomotives
