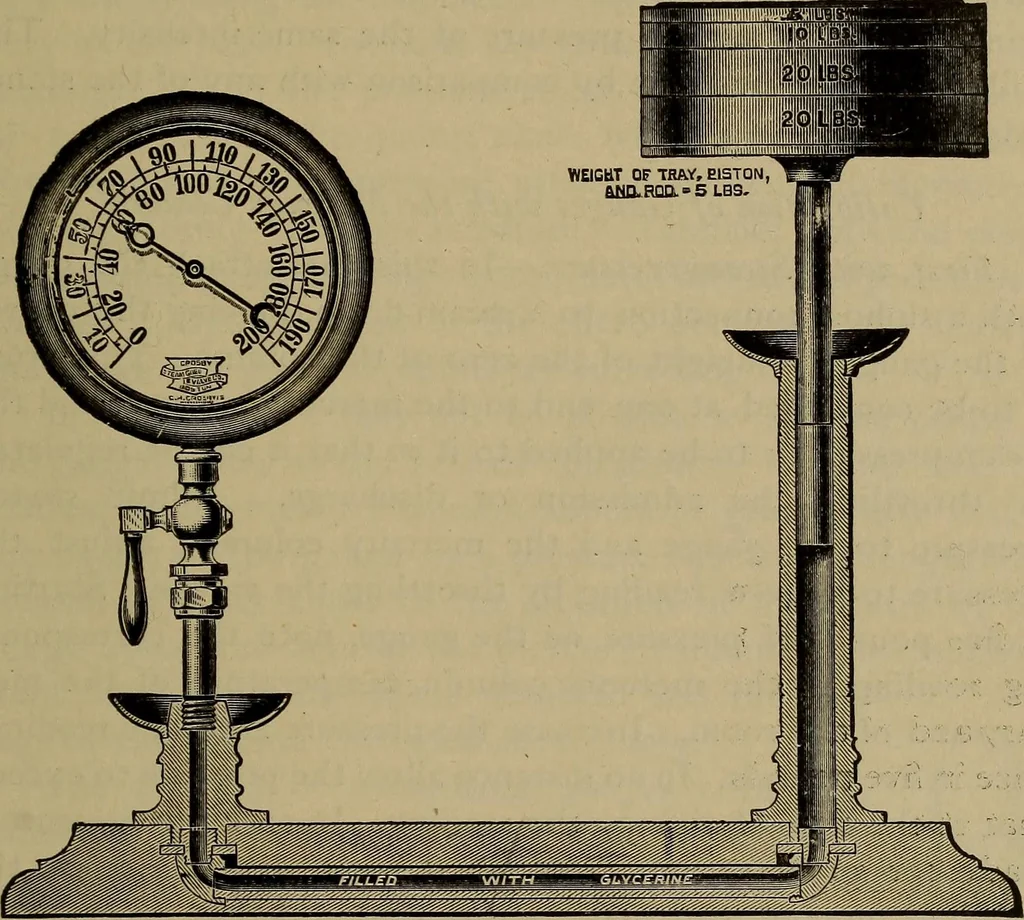

§28l.] MEASUREMENT OE PRESSURE, 111 in which works a nicely fitted piston ; this cyHnder connectswith a U-shaped tube ending in a pipe tapped and fitted for … Fig. 136.—Crosby Steam-gauge Testing Apparatus. attaching a gauge. The tube is filled with glycerine, inwhich case a known weight added to the piston produces anequal pressure on the gauge, less the friction of the piston inthe tube. This is almost entirely overcome by giving thev;reight and piston…
