Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 417

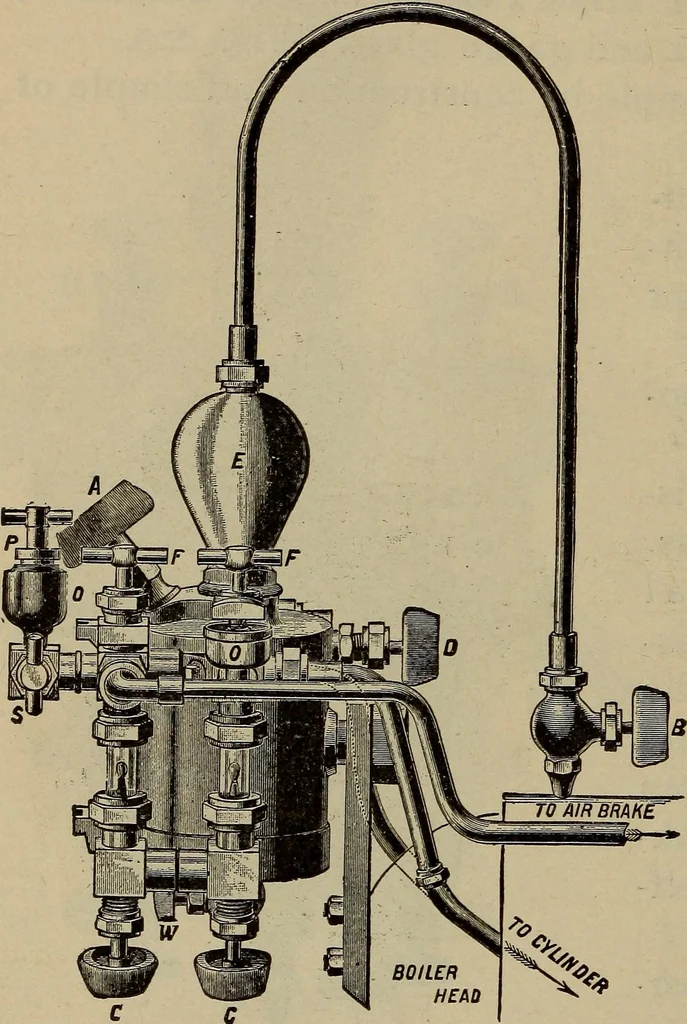

open whilelubricator is inoperation. Al-low sufficienttime for con-denser andsight-feed glass-es to fill withwater. 2. Openwater valve D.3. Regulateflow of oil toright and leftc y 1 i n d e r s byvalves E E, andto air pump byvalve L. To OperateAuxiliary Oilers.See that valveH is closed.Then open… … j Figure 199 New Nathan Lubricatorside view with steam and tallow pipes I INJECTORS, STEAM GAUGES, ETC. 409 Immediately after filling the lubricator do not fail to open the water feed valve D, in order to prevent any iexcessive pressure due to the expansion of the heated ;!oil. Getting New or…
