Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 134

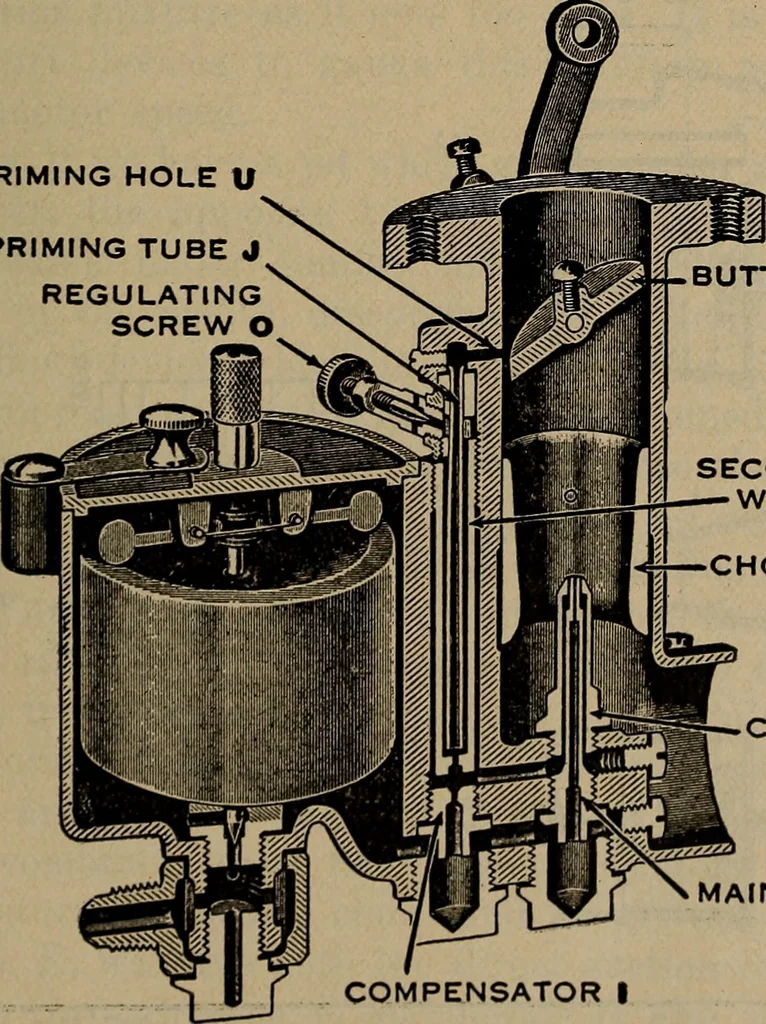

s becomevery popular for airplane engine use because of its sim-plicity, as mixture compensation is secured by a compen-sating compound nozzle principle that works very well inpractice. To illustrate this principle briefly, let us con-sider the elementary type of carburetor or mixing valve,as shown… … BUTTERFLY T SECONDARYWELL P CHOKE X CAP JET H MAIN JET 0 COMPENSATOR I Fig. 51.—Sectional View of Zenith Compound Nozzle Compensating Carburetor. 136 Aviation Engines
Airplanes
