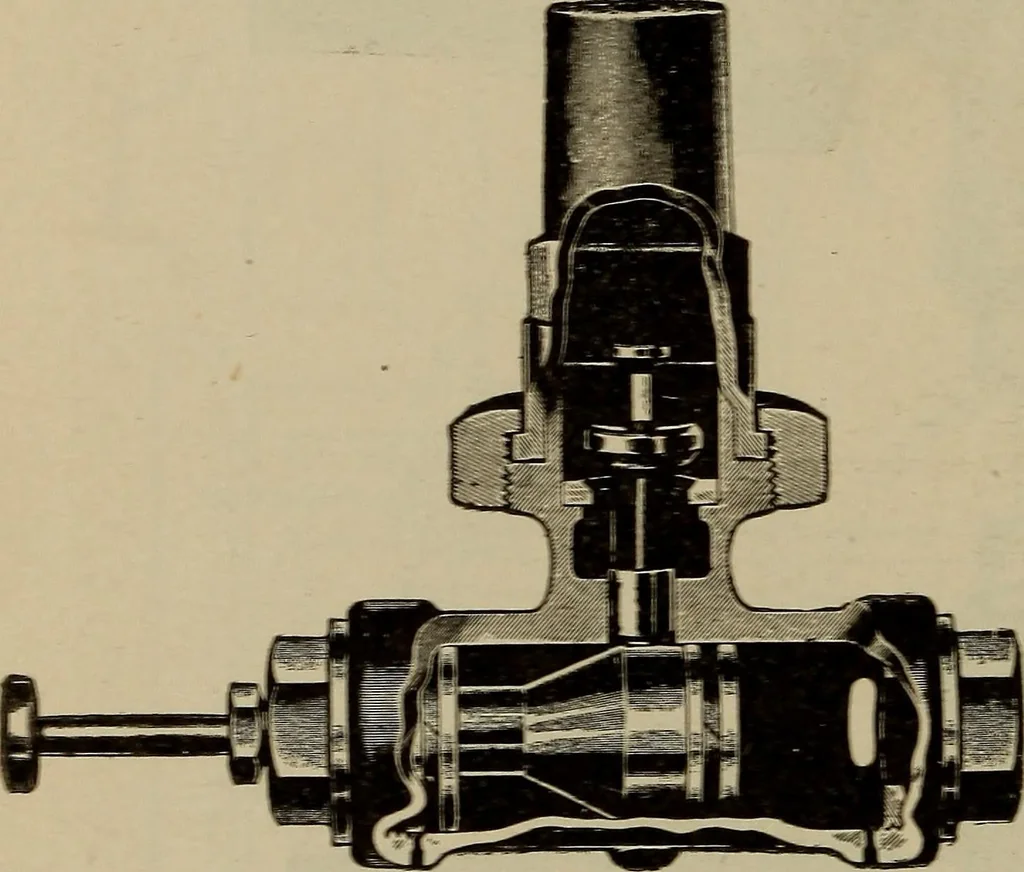

sandtrap to sand boxor sand pipes bymeans of the un-ion couplings inthe most convenient position; theplug P must pointstraight down-ward and the airs n o u t S mustpoint in the di-rection c:: the de-livery.Connect the ejector to sand pipe in such a way that the blast will strike in about the center… … sectional view Figure 208 Hancock Pneumatic Cylinder Cock : INJECTORS, STEAM GAUGES, ETC. 421 in both directions, as illustrated. This will lead the,] condensed water, resulting from a leakage of the steamvalve, down the drip pipe and thus prevent the freez- ing of the ejector pipe in cold…
