A catechism of the steam engine and its various applications to mines, mills, steam navigation, railways, and agriculture (1876)
Bourne, John, civil engineer. [from old catalog] · New York, D. Appleton and company · leaf 330

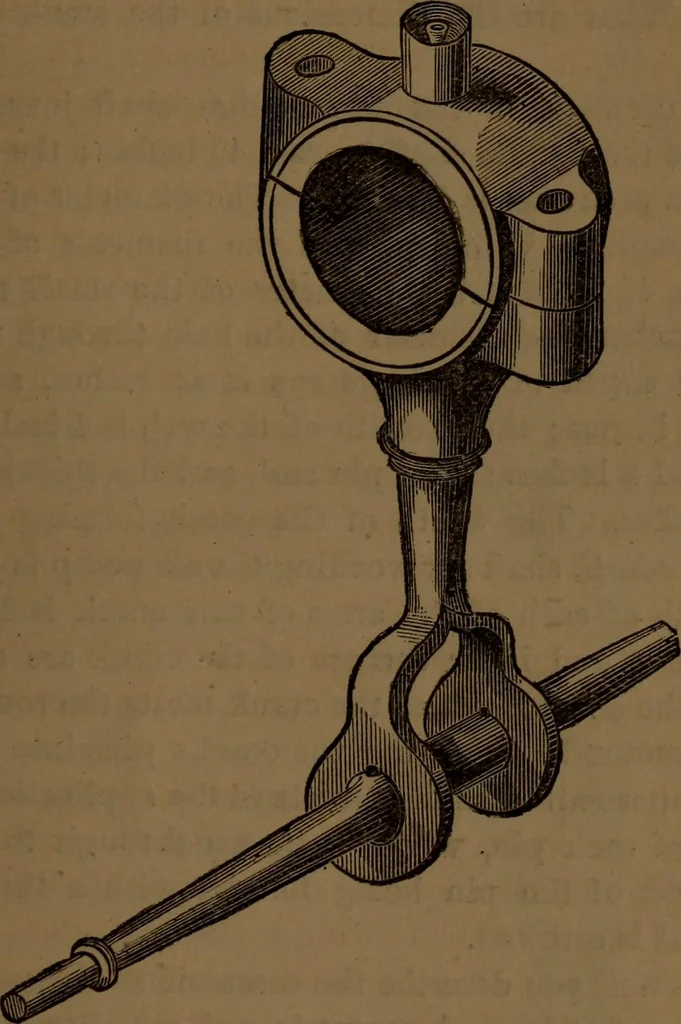

lts passing through thelugs is 1 inch, and the bolts are tapped into the lower brass, andaccurately fitted into the upper one, so as to act as steady pins,as in the previous instance. The lower eye of the connecting CONNECTIONS OF THE AIR PUMP. 315 rou IS forked, so as to admit the eye of the air… … Air Pump Connecting Eod and Cross Head. Messrs. Pcnn. upon the cross head by means of a feather, so that the cross headpartakes of the motion of the connecting rod, and a cap, similarto that attached to the piston rod, is attached to the air pumprod, for connecting it with the cross head. The…
Steam engineering · Steam-engines
