Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 435

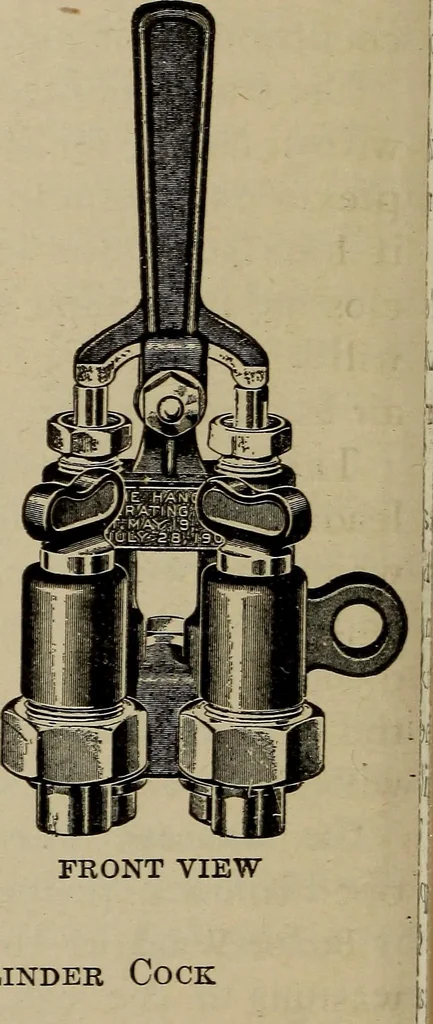

side view Figure 209 Operating Valve for Cylinder Cock aected to two ^-in. pipes run under lagging andconnected to the operating valve in the cab. One ofthese pipes connects with the closing end of eacfycylinder cock. The other pipe connects with each INJECTORS, STEAM GAUGES, ETC. 423 opening end…
Locomotives
