Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 48

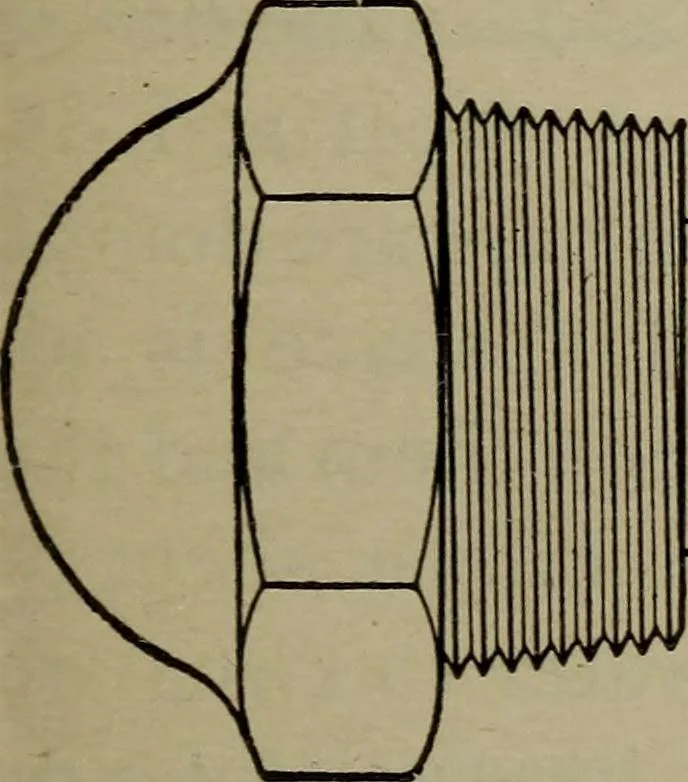

Figure 8 sufficient distance to allow of riveting. It is apparentthat the freedom of movement of the head of the boltwithin its socket will allow the fire sheet to go andcome, without subjecting the bolt to such severestrains and transverse stresses as would occur if thebolt were rigid. Fig. 9 is a… … Figure 9 except that the thread has not yet been cut on the enathat screws into the fire sheet. The Tate flexible staybolt is manufactured by the Flannery Bolt Company,Pittsburg, Pa. a8 LOCOMOTIVE ENGINEERING It is also necessary tostrengthen the flat top orcrown sheet of the fire-box.There are…
Locomotives
