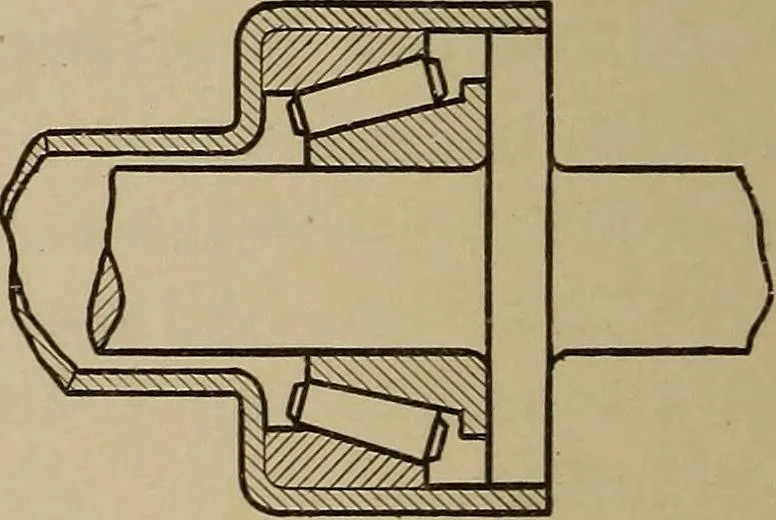

stened or - geared together as to turn inunison. 63. Grant Roller Bearing. The Grant roller is conicaland forms an intermediate between the ball and thecylindrical roller having someof the advantages of each.The principle is much thesame as in the adjustable ballbearing, Fig. 52, rolling conesbeing… … Fig. 56. HYATT ROLLERS. 125 Two sets of cones are used on a bearing, one at eachend to neutralize the end thrust, the same as with ballbearings. 64. Hyatt Rollers. The tendency of the rollers toget out of alignment has been already noticed. TheHyatt roller is intended by its flexibility to…
