Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 498

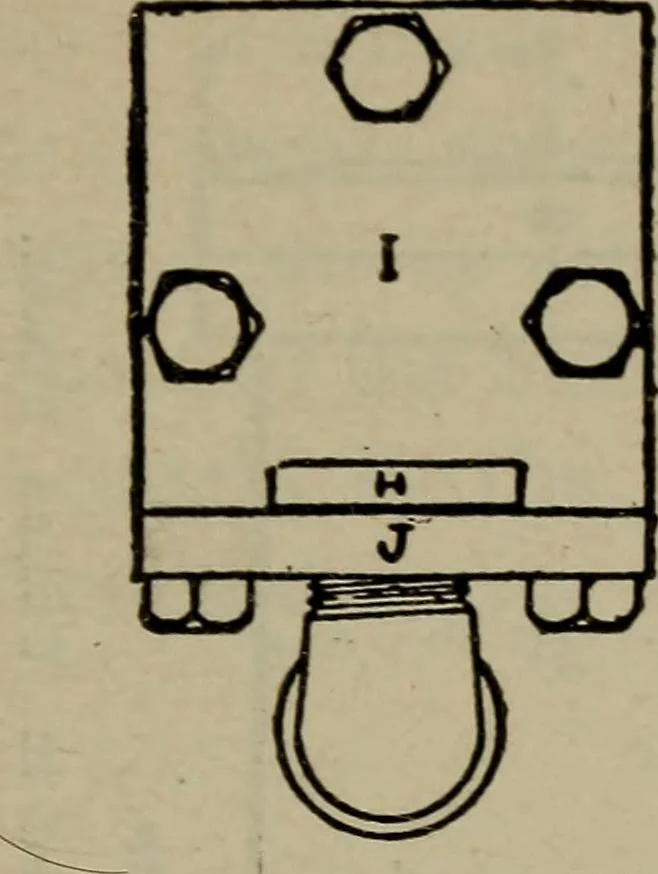

after both have left the burner,or whether this takes place inside the burner. Outsideburners of the Booth type (Fig. 223c) are used exclusivelyon the Santa Fe; and inside burners, Sheedy type (Fig.223d . are standard on the Southern Pacific. The Ham-meF type (Fig. 223c), used on the Salt Lake, is… … View of Burner withfront Plofe Reme*«oJ
Locomotives
