Marine engines; problems, notes and sketches. Additional to the text-book used in the instruction of naval cadets of the second class, United States Naval Academy (1899)
United States Naval Academy. Dept. of Marine Engineering · Annapolis : Dept. of Steam Engineering, U. S. Naval Academy · leaf 94

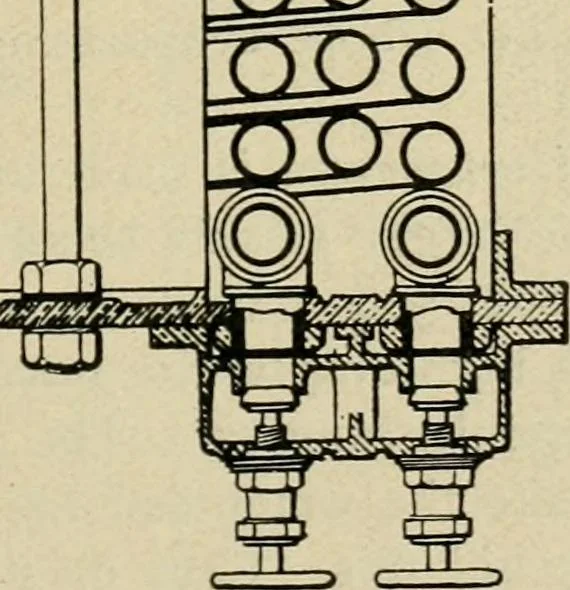

^2D^2D … Fig. 40.—Bairds Distiller.89 90 MARINE engines: end A being on top. If placed horizontally, the side C is on top.The tubes are ordinarj- condenser tubes, Y^ outside diameter.No. 16 wire gauge. They are expanded into the tube sheets,the lower tube sheet being arranged to slide in a stuffing box…
Marine engines
