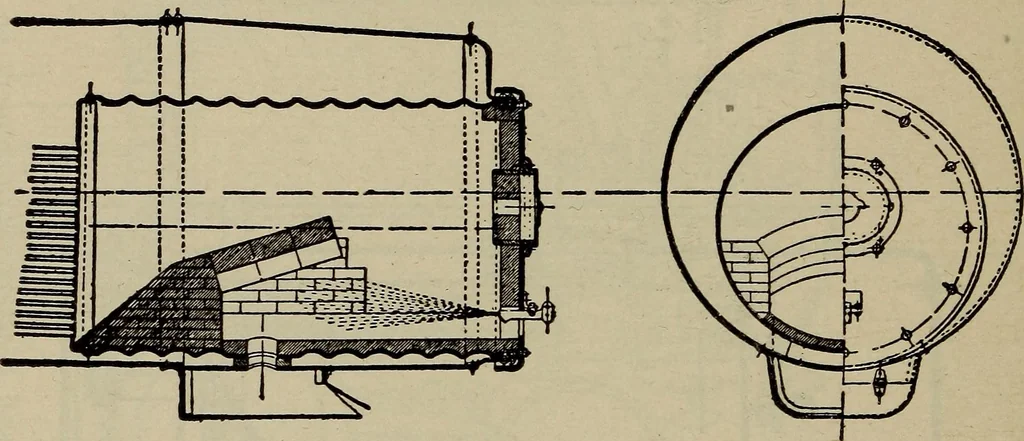

ed on thegrate-bars (or equivalent supports), extending back fromthe front wall, and covering about half the bottom areaof the furnace. A firebrick hearth is placed under theburner to catch any oil which may drop from it. Acourse of brick is also placed on each side, sufficientlyhigh to protect the… … Figure 223m. Oil-Burner in Vanderbilt Type of Firebox. possible, with heavy frame, and is arranged to close per-fectly air-tight so as to avoid loss of heat by circulationof cold air through the firebox and tubes when the oil-supply is cut off. The firedoor may be retained, providedits joints are…
