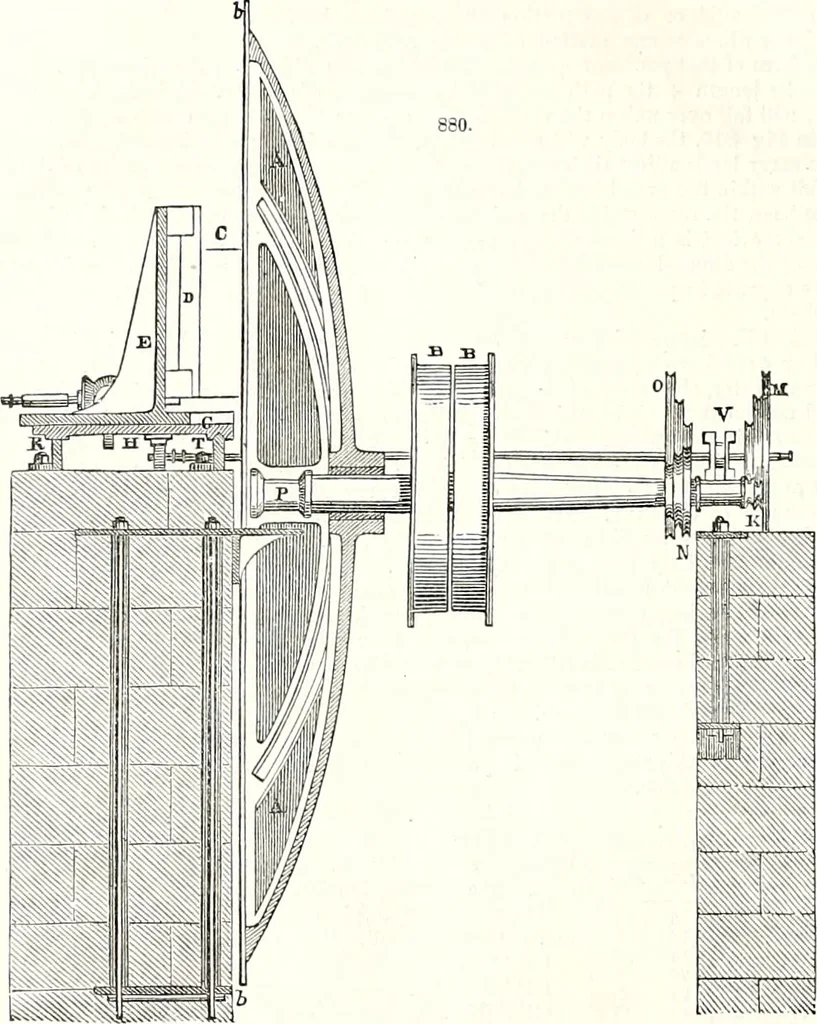

lding-down bolts. Upon the same shaft arehung the driving-pulleys B B, whence the motion of the machine is derived. While the axis of the saw-frame remains stationary during the operation of the machine, the log ofwood C, which is being cut up, is urged forward against the saw by a gradual… … bers, and firmly bolted down to them. The lower part of the carriage G, slides on these rails at threesurfaces of contact on each rail, as may be seen m Fig. 8S2. The upper part of the carriage E is helddown to the part G by means of dovetail bevel surfaces, where a broad piece of metal is…
