Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 589

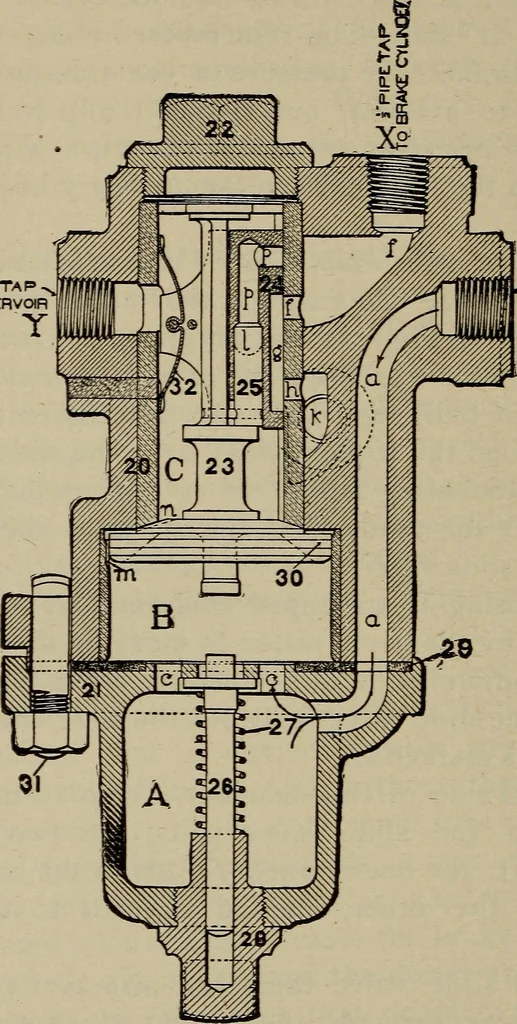

arked A, leads to the atmos-phere. In the slide valve there are also two ports; onepasses clear through the valve, as shown by theletters /, p-p, and the other is a groove cut in the bot-tom of the valve, and marked g, and when the valve ismoved toward the left end of chamber C (in otherwords,… … <i*PlFETAPsTO TRAIN PlPfl w Figure 233New Style Plain Triple Valve vave and valve seat and on through pipe connectionX directly into the brake cylinder; and when the slide AUTOMATIC AIR BRAKES 547 valve is in the opposite end of chamber C the groove^ in the bottom of the slide valve connects the…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
