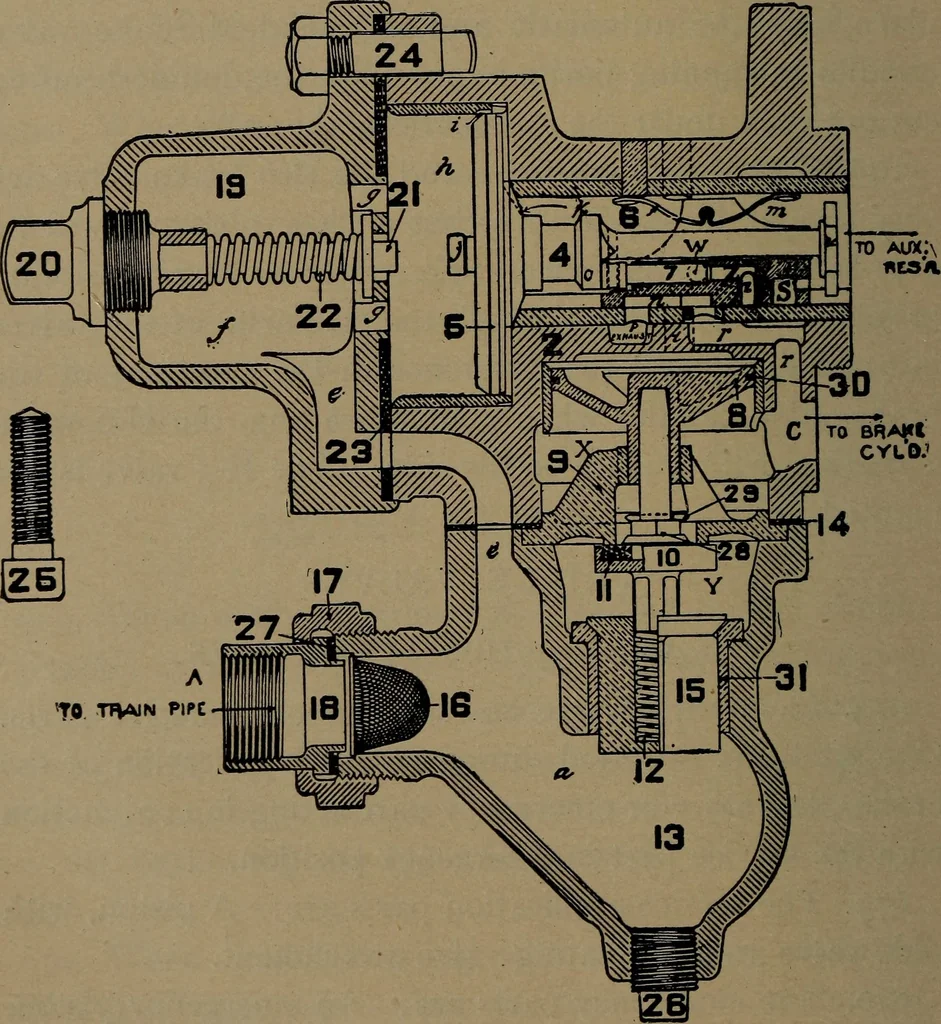

e service application parts are:—A piston, withslide valve and graduating valve attachment. 676. The emergency parts are:—An emergency piston,emergency valve, a check valve and graduating valve. 252 QUICK ACTION TRIPLE VALVE QUICK ACTION TRIPLE VALVE CHARGING POSITION 677. Air from the brake pipe… … Fig. 83.—Quick Action Triple Valve, Release Position. QUICK ACTION TRIPLE VALVE 253 and k, in the piston seat, filling slide valve chamber m,thence to the auxiliary reservoir. The air continues toflow through the valve in this manner until the pressurehas equalized on both sides of the triple valve…
