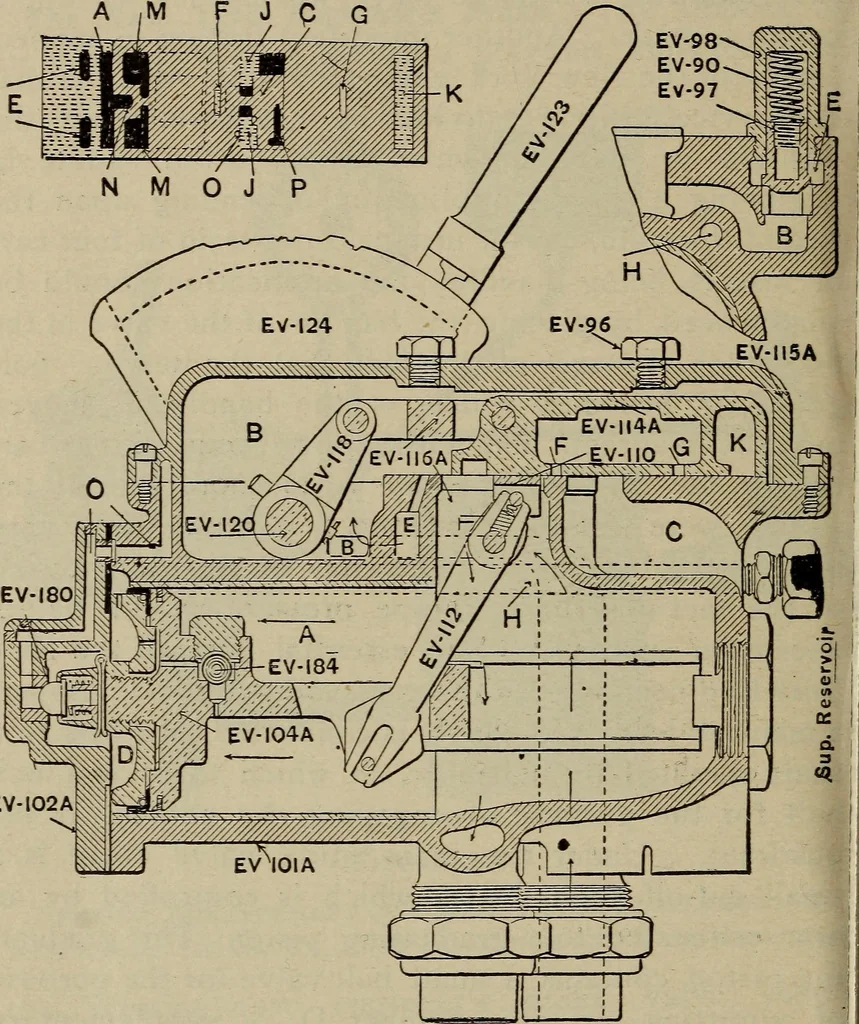

ball valve for the purposeof admitting air into chamber D, or supplementaryreservoir, and a ball-faced vent valve fastened to theend of the equalizing piston for the purpose ofclosing port O (see Fig. 249). The cut, Fig. 248, showing the duplex gauge, illus-trates how the single governor,… … EV-102A Figure 249 New York Engineers Brake Valve, Release Position i top right-hand corner is a sectional view of the excesspressure valve, while in the top left-hand corner is a,view of the main slide valve, and valve seat. In| AUTOMATIC AIR BRAKES 593 studying this view of the face of the main…
