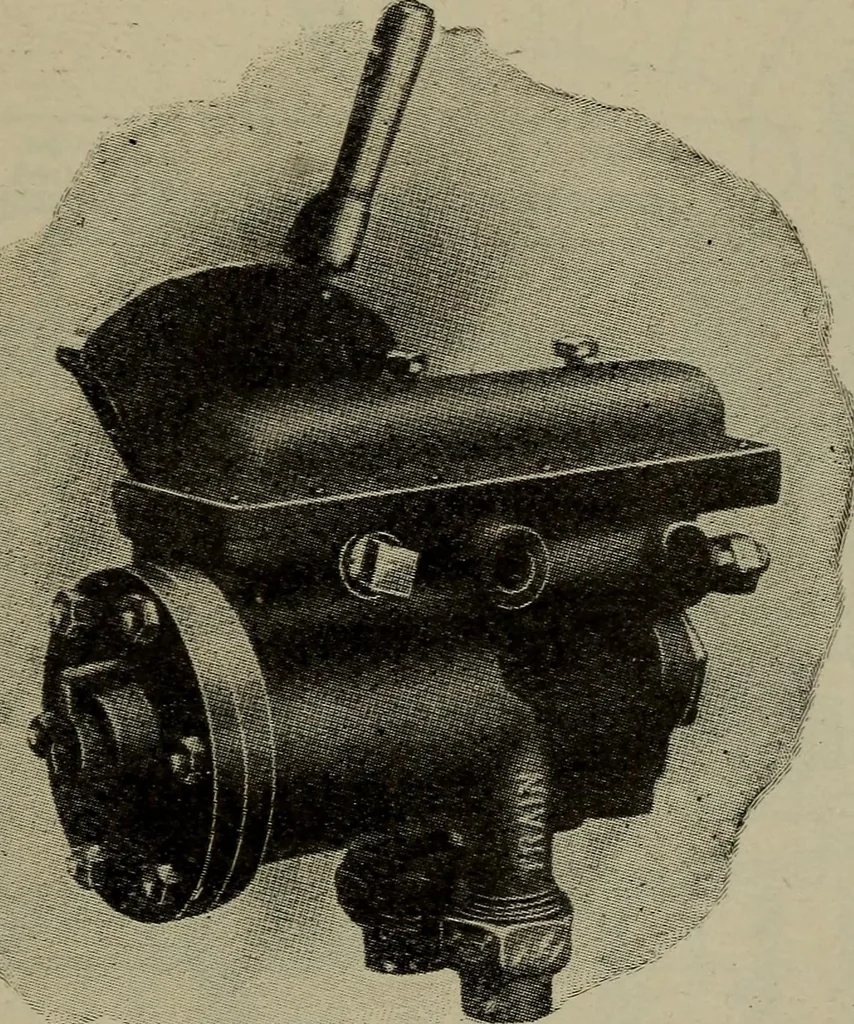

used, their purpose being fully understood,Nos. 9 and 10 can be added, if desired, so that the driverbrake cylinders and reservoir can be cut out, and enginetruck brake operated by truck brake reservoir. THE B2 BRAKE VALVE. This brake valve, although modeled somewhat uponthe principles of the B and… … Fig. 266. B-2 Brake Valve. longitudinal side section showing travel of main slidevalve EV 194 and how the graduating valve EV nois controlled by the piston EV 193. This view also showsthe different positions of the brake valve handle. Fig.268 is a top view of the valve with the cover, slide valve…
