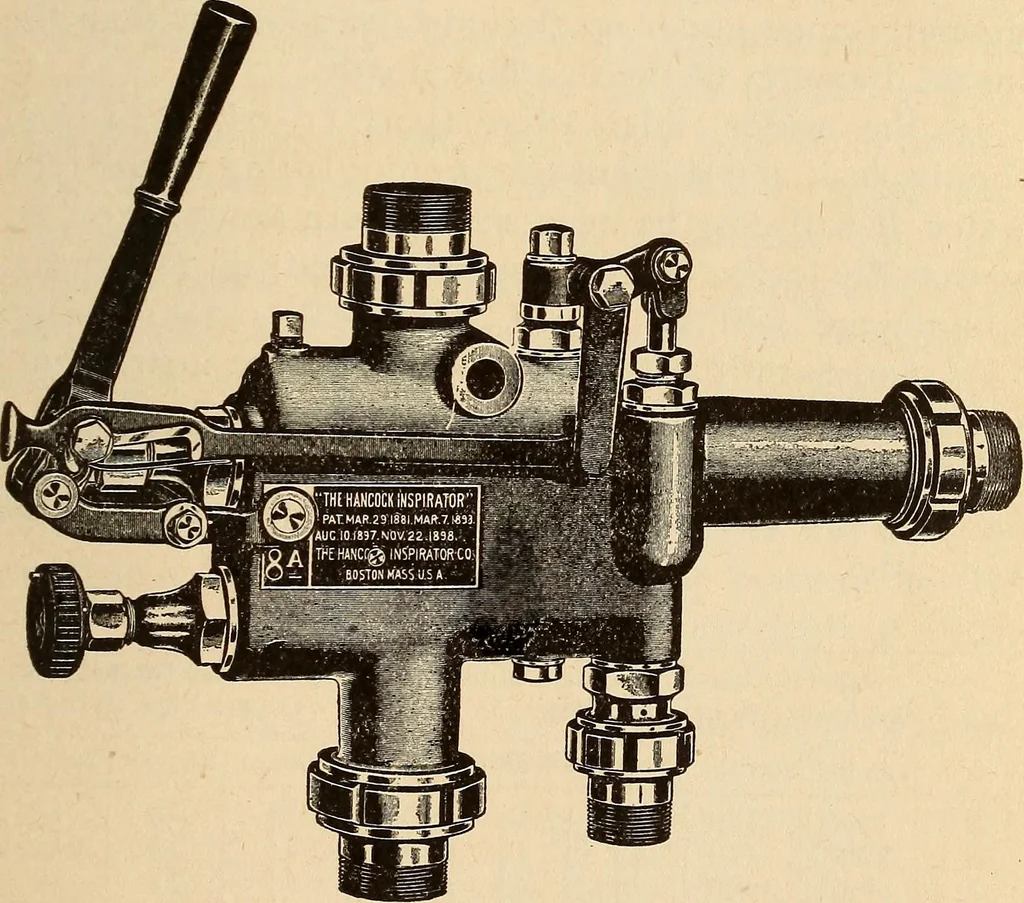

INJECTORS, STEAM GAUGES, ETC. 373 it may be relied upon to start promptly after doingduty as a heater. The throttling capacity is fully 50 per cent of themaximum capacity under ordinary variations of liftand of feed water temperature. If it is desired that the instrument be placed outsidethe engine… … Figure 173The Hancock Inspirator, Sectional Viewrods, a quick motion screw attachment can be readilysubstituted in the place of the lever handle. The construction of the injector is such that all itsinterior nozzles and other component parts are easilyaccessible for examination and repairs. 374…
