Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 710

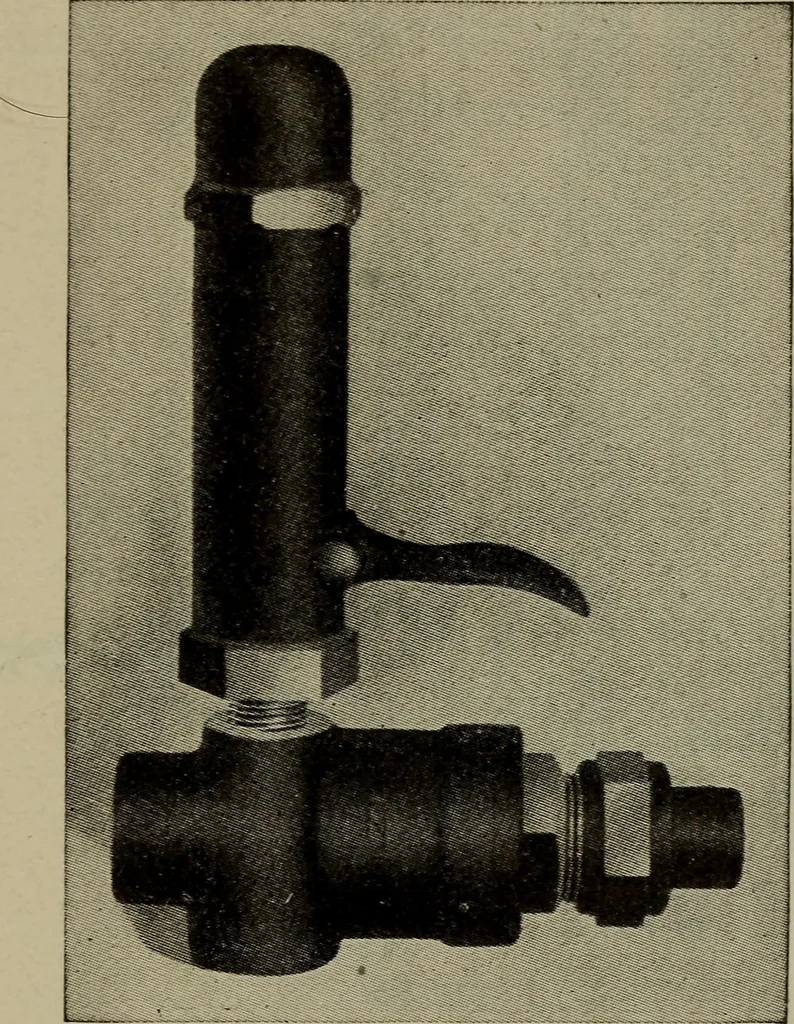

i Union gasket. HIGH SPEED CONTROLLER WITH LEVER SAFETY VALVE. This valve is operative when the locomotive equipmentis set for high speed service. … Fig. 291. High Speed Controller. Fig. 291 is an outside view showing the general ar-rangement. Fig. 292 is a section showing the operativeparts. The Safety Valve is for use at all times to graduateoff brake cylinder pressure after an application of the 657 658 LOCOMOTIVE ENGINEERING train brakes…
Locomotives
