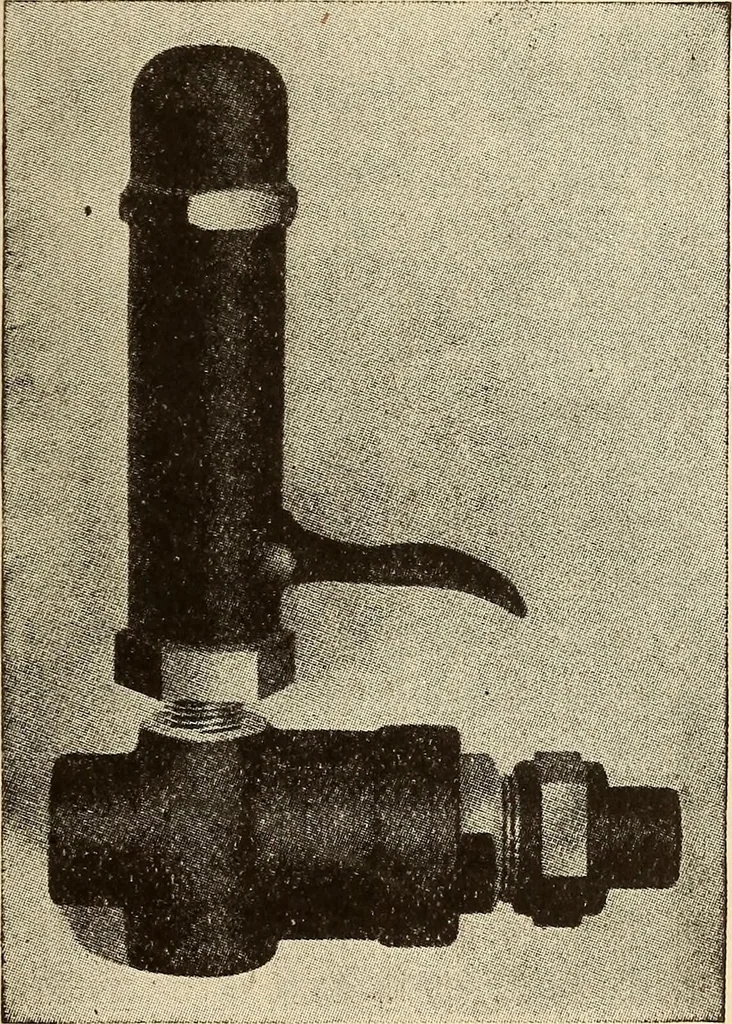

spring; SA 656 LOCOMOTIVE ENGINEERING 21, Diaphragm stem; SA 22, Nut; SA 23, DiaphragmWasher; SA 24, Body; SA 25, Feed valve cap nut; SA2(i, Feed Valve; SA 28, Feed valve spring; SA 29,Spring box; SA 30, Check nut; SA 31, Diaphragm ring;SA 32, Diaphragm; SA 33, Diaphragm Shield; SA 34,Regulating… … Fig. 291. High Speed Controller. . Fig. 291 is an outside view showing the general ar-rangement. Fig. 292 is a section showing the operativeparts. The Safety Valve is for use at all times to graduateoff brake cylinder pressure after an application of tli« 657 658 LOCOMOTIVE ENGINEERING train brakes…
