Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 727

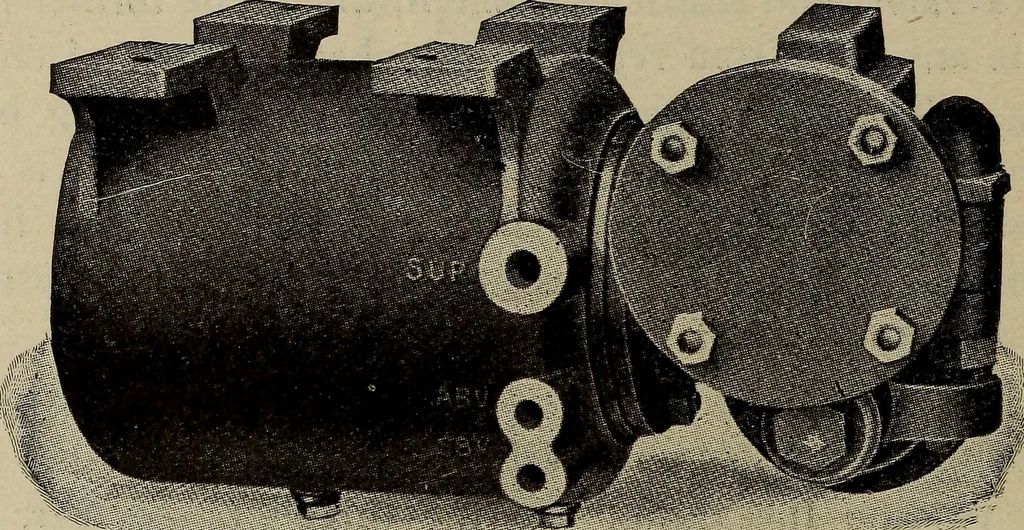

alchoke fittings to prevent serious loss of main-reservoirair, and the release of the other locomotive brakes duringa stop, in case of burst brake cylinder hose connection.The cylinder gauge is connected with the brake cylinderpipe. The automatic-brake-valve pipe connections, other thanalready… … FIG. 296. DISTRIBUTING VALVE AND DOUBLE-CHAMBER RESERVOIR CONNECTIONS: SUP—Main-Reservoir Pipe; ABV—Double-Heading Pipe;SBV—Application-Chamber Pipe THE DISTRIBUTING VALVE. This valve is the important feature of the ET equip-ment. Fig. 296 is a photographic view of the left side ofthe valve and its…
Locomotives
