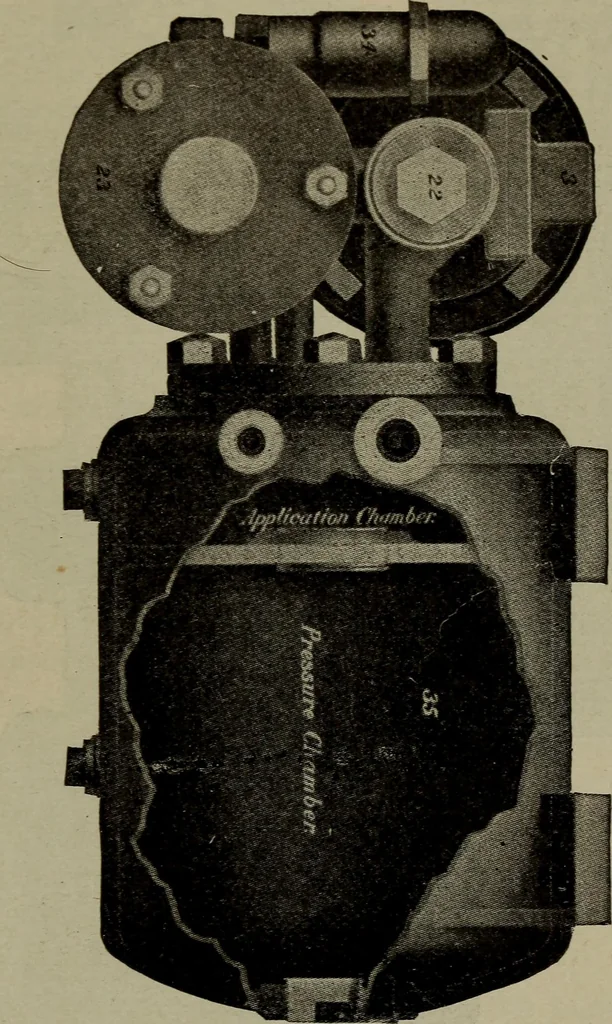

E AND DOUBLE-CHAMBER RESERVOIR CONNECTIONS: SUP—Main-Reservoir Pipe; ABV—Double-Heading Pipe;SBV—Application-Chamber Pipe THE DISTRIBUTING VALVE. This valve is the important feature of the ET equip-ment. Fig. 296 is a photographic view of the left side ofthe valve and its double-chamber reservoir.… … FIG. 297. DISTRIBUTING VALVE AND DOUBLE-CHAMBER RESERVOIR PIPE CONNECTIONS:Upper—Brake-Cylinder Pipe; Lower—Brake Pipe the reservoir; also the safety valve 34, which is an essen-tial part of the distributing valve. To simplify the tracingof the ports and connections, the various positions of this…
