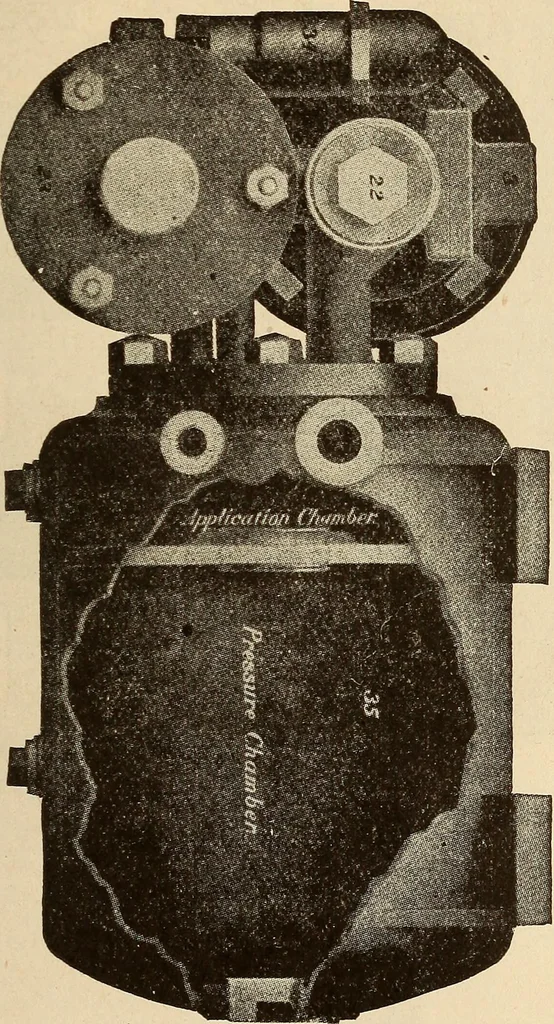

AXD DOUBLE-CHAMBER RESERVOIR COXXECTIOXS: SLP—Main-Reservoir Pipe; ABV—Double-Heading Pipe; SBV—Application-Chamber Pipe THE DISTRIBUTIXG A\\LVE. This valve is the important feature of the ET equip-ment. Fig. 296 is a photographic view of the left side ofthe valve and its double-chamber reservoir.… … FIG. 297. DISTRIBUTING VALVE AND DOUBLE-CHAMBERRESERVOIR Upper- PIPE CONNECTIONS:-Brake-Cylinder Pipe; Lower- -Brake Pipe the reservoir; also the safety valve 34, which is an essen-tial part of the distributing valve. To simplify the tracingof the ports and connections, the various positions of…
