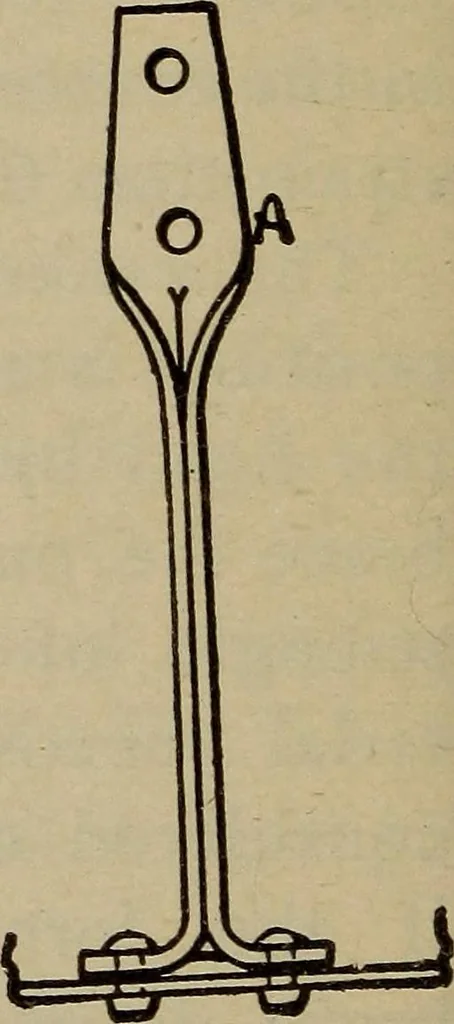

being placedin the boiler. It is carried at the frontend by a row of radial sling stays fromthe outside plate, and supported at therear by the back head. Figs. 27 and 28show respectively a sectional view andan end elevation of this boiler. It willbe seen at once that the question of staysfor a… … Figure 26 THE BOILER 73
