Textile raw materials and their conversion into yarns : (the study of the raw materials and the technology of the spinning process) a text-book for textile, trade and higher technical schools, as also for self-instruction ; based upon the ordinary syllabus and curriculum of the Imperial and Royal Austrian weaving schools (1901)
Zipser, Julius, Salter, Charles · London : Scott, Greenwood · leaf 271

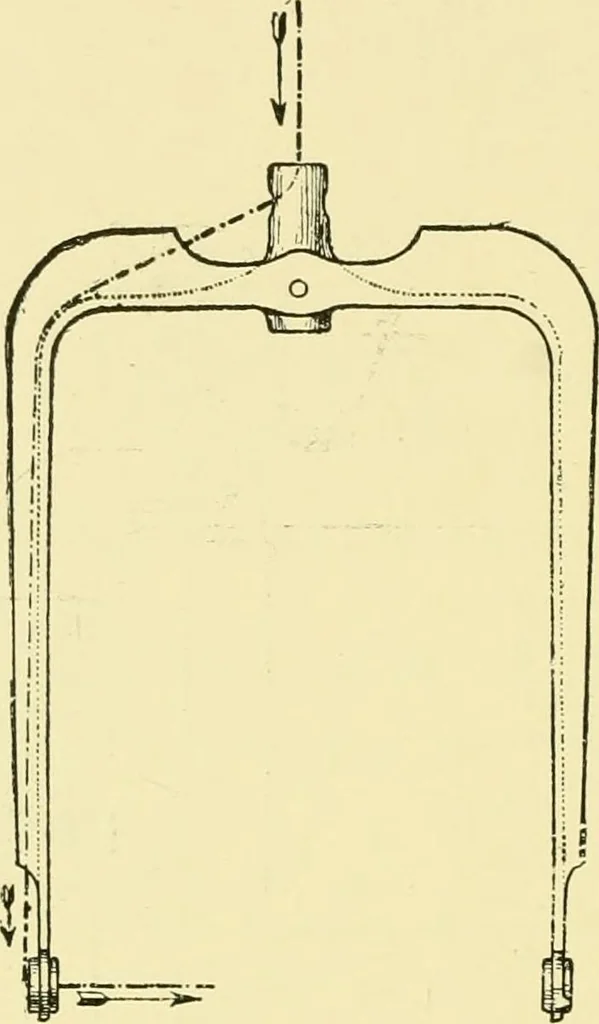

Fig. 150.—Flax Line Doubling iManic (vertical cross section). twists being three or six-ply. The various twists are soldrough, washed, semi- or full-bleached, or dyed. 264 tp:xtile raw materials. Flax Line Doubling Frame. As can be seen from Fig. 150, the single frame for doub-ling flax line is… … Figs. 151 to 153.—Flyer of Doubling Spindle.Fig. 151. Front View ; Fig. 152, Side View ; Fig. 153, Top View. the bobbins, b—which rest on spindles, a, on the top of theframe—through a wire loop, e, then under the glass rod, d, ofthe water trough, c, to the glass rod,/, and thence to the rollers,g,…
Textile fibers · Spinning
