Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 764

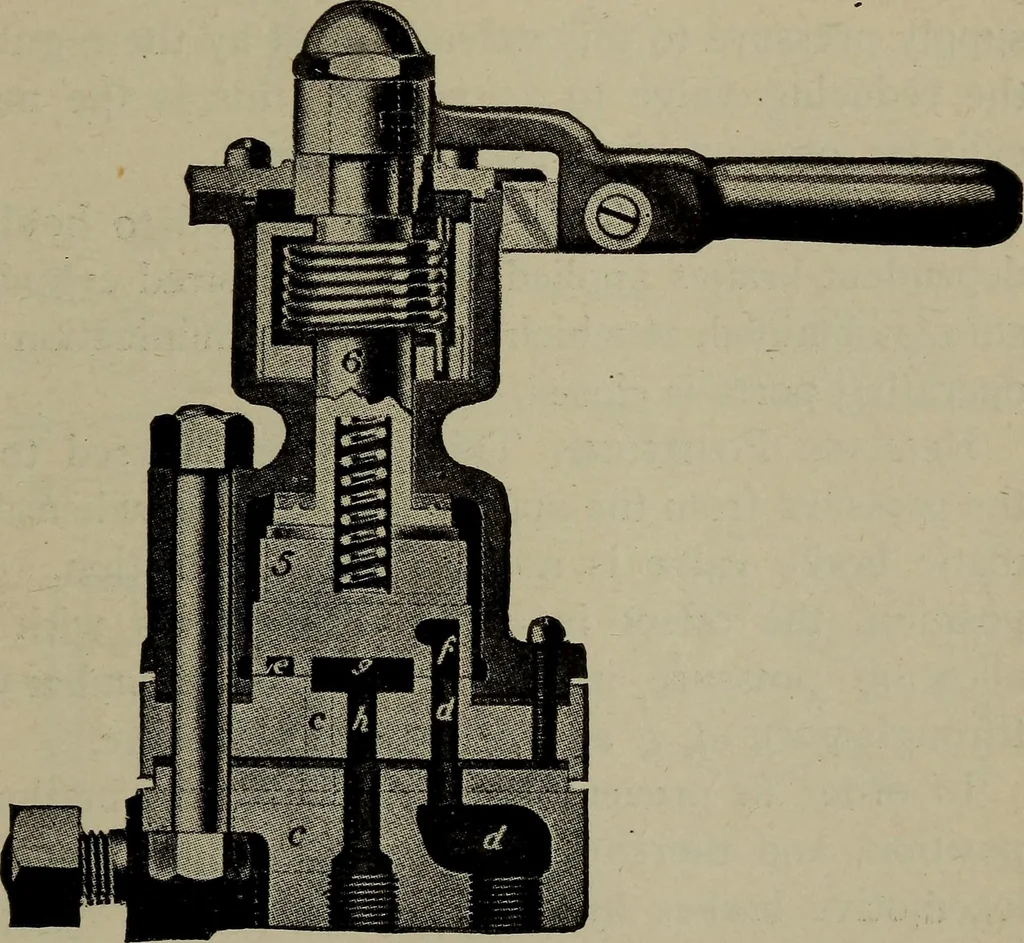

FIG. 315. INTERIOR VIEW OF THE INDEPENDENT BRAKE VALVE CONNECTIONS: BV—Application-Chamber Pipe to Automatic Brake Valve;EX—Exhaust; AC—Application-Chamber Pipe to Dis-tributing Valve; MR—Reducing--Valve Pipe 7o8 LOCOMOTIVE ENGINEERING when the independent brake is not in use. Port / in therotary…
