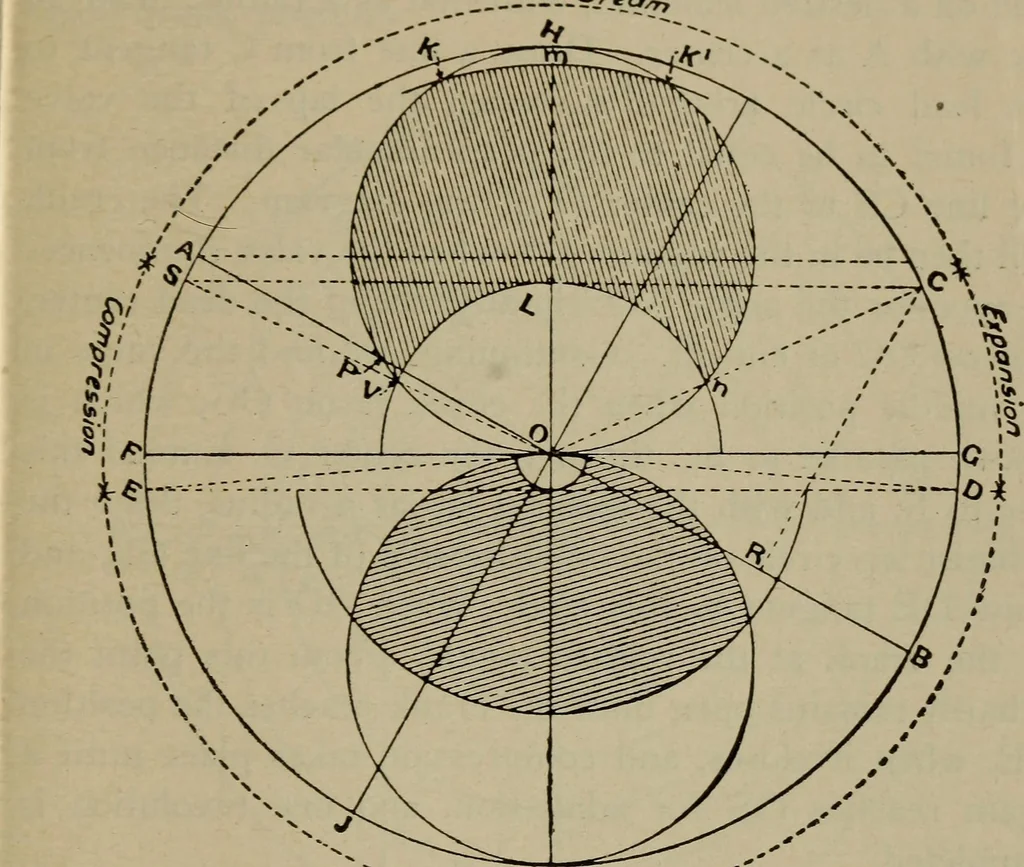

the swing of the link. -* ■C-S J ^ FIG. 335 The location of the link and eccentric rod connectingpoint K, Fig. 333, cannot be determined with any prac-ticable formula, but must, as already stated, be foundby plotting to meet the requirements of the different cut- WALSCHAERT VALVE GEAR 757 offs and… … FIG. 336 THE REAULEAUX AND ZEUNER DIAGRAMS. Figure 336 shows a combination of two diagrams,namely, those of Reauleaux and Zeuner, which coincideexactly as to the different valve movements, which maybe found as follows: The distance AB represents the travel of the valve as 758 LOCOMOTIVE ENGINEERING…
