Modern locomotive engineering, with questions and answers .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co · leaf 786

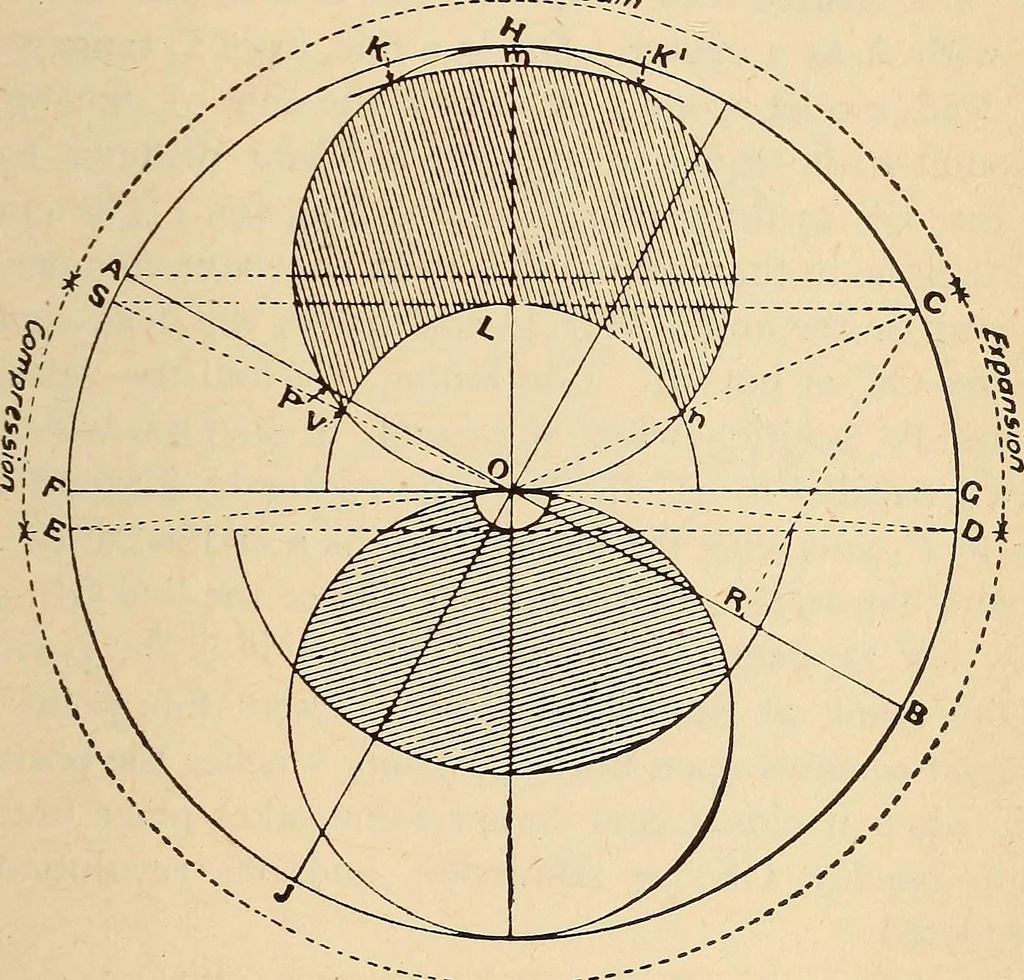

the swingof the link. .!J - R FIG. 335 The location of the link and eccentric rod connectingpoint K, Fig. 333, cannot be determined with any prac-ticable formula, but must, as already stated, be foundby plotting to meet the requirements of the different cut- WALSCHAERT VALVE GEAR 75; offs and… … FIG. 336 THE REAULEAUX AND ZEUNER DIAGRAMS. Figure 336 shows a combination of two diagrams,namely, those of Reauleaux and Zeuner, which coincideexactly as to the different valve movements, which maybe found as follows: The distance AB represents the travel of the valve as 758 LOCOMOTI\ E…
Locomotives
