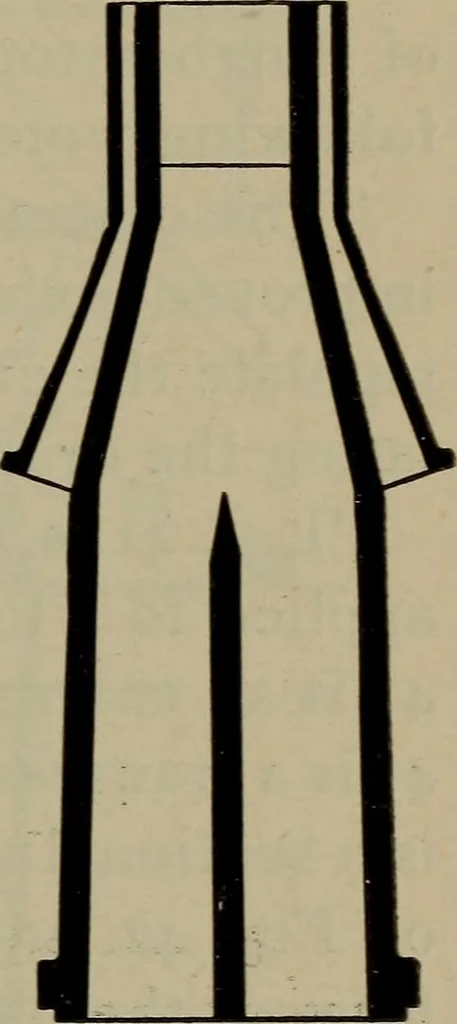

Figure 40 … The nozzle areas for different positions of thereverse lever are as follows: Center notch, 22 sq. in.;second notch, 23 sq. in.; fourth notch, 24^ sq. in.;sixth notch, 25^ sq. in.; eight notch, 26TV sq. in.;tenth notch, 28^ sq. in., and in the corner, 29J-J sq.in. The device is said to work…
