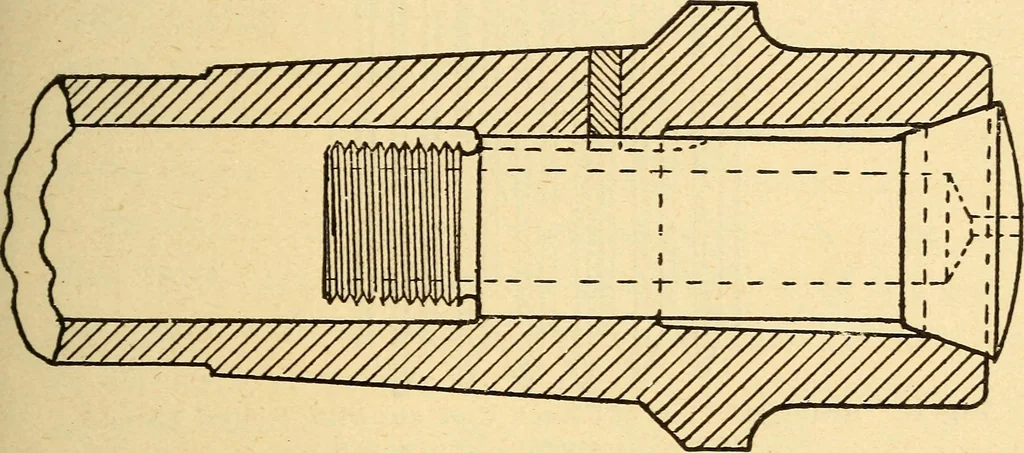

An illustration from The watchmakers' lathe, its use and abuse; a story of the lathe in its various forms, past and present, its construction and proper uses, 1903, leaf 40 — it into the headspindle w4thin one thirty-second of an inch of its largestdiameter, as shown in Fig. 25, but many of them will not doso. They may even project as far as shown in Fig. 26. Inthis case the chuck seat is too small and must be ground THE AMERICAN LATHE. 39 out, so that the chucks will… … Fig. 25. Enlarged View of Eathe Spindle, showing Chuck ProperlySeated. Compare with Fig. 26.
