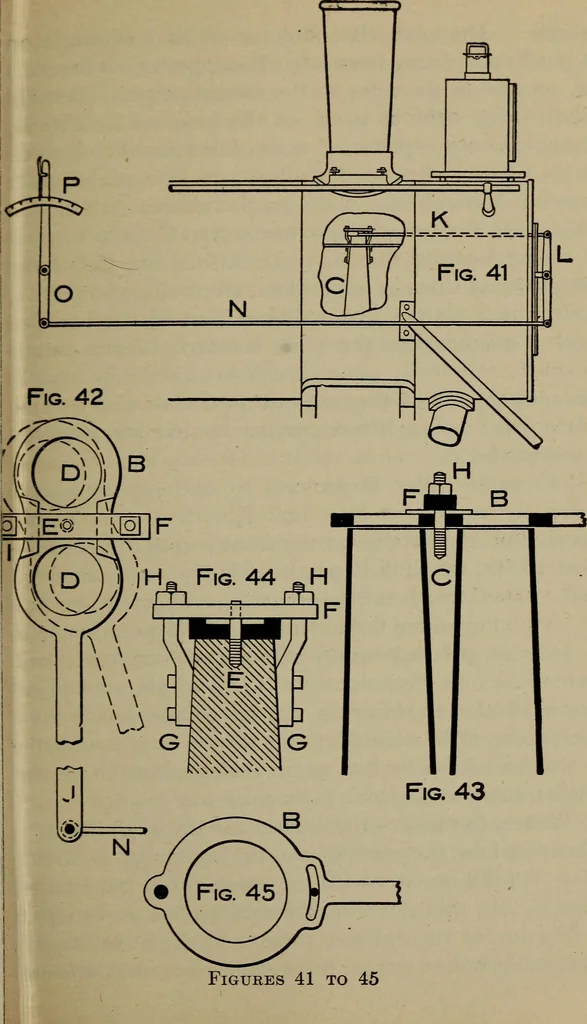

h aplate B, fitted onto the upper end of the exhaust pipeC, which may be double, as is illustrated in Fig. 43, orsingle—that is, the two exhausts of the engines of thelocomotive running into a single exhaust pipe. The plate B is provided with apertures D of thesame size as the apertures at the… … Figures 41 to 45 96 LOCOMOTIVE ENGINEERING nozzle. The plate B is fulcrumed in its middle ona pin E, projecting from a bar F, supported on bracketsG, secured to the sides of the exhaust pipe C, the saidplate being held in place on the brackets by nuts H,screwing on the threaded ends of the said…
