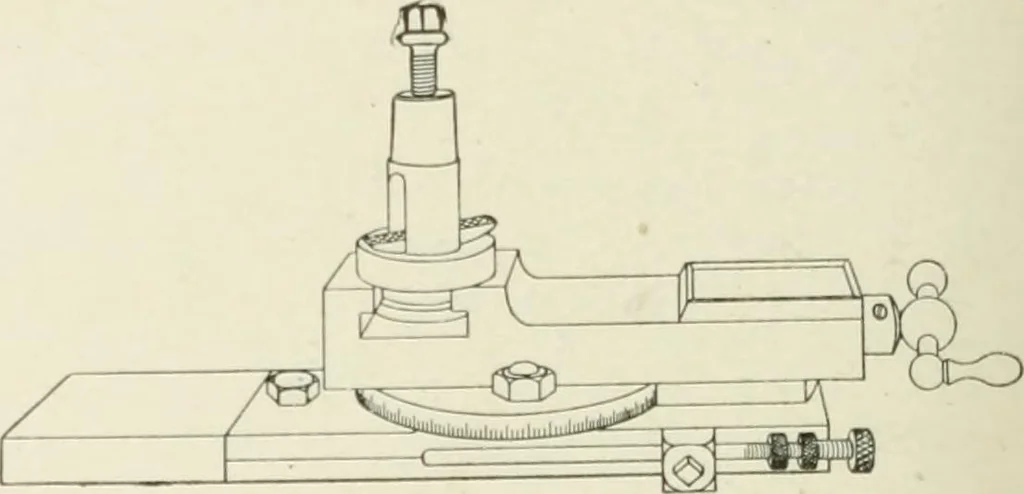

ii,tlie set-over for the 16 inches would be one-half of 1 inch, or \ inch. 107 92 MACHINE SHOP WORK. This, then, -would Ije the setrover for the work under considera-tion, and for any piece to he tapered at the rate of i incli in 4inciies wlieu luld on a l(]-inth mandrel. EXAMPLES FOR PRACTICE. 1.… … Fig. 1.39. 2. A connecting rod 6 feet long is to be turned taperingfrom the center to the neck back of the stub-ends. This distanceis 26 inches. The diameter at the center is to be 3 inches, andat the neck 2i inches. How much offset must be given to thedead center? Ans. .692-finches. 3. A shaft had…
