Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 138

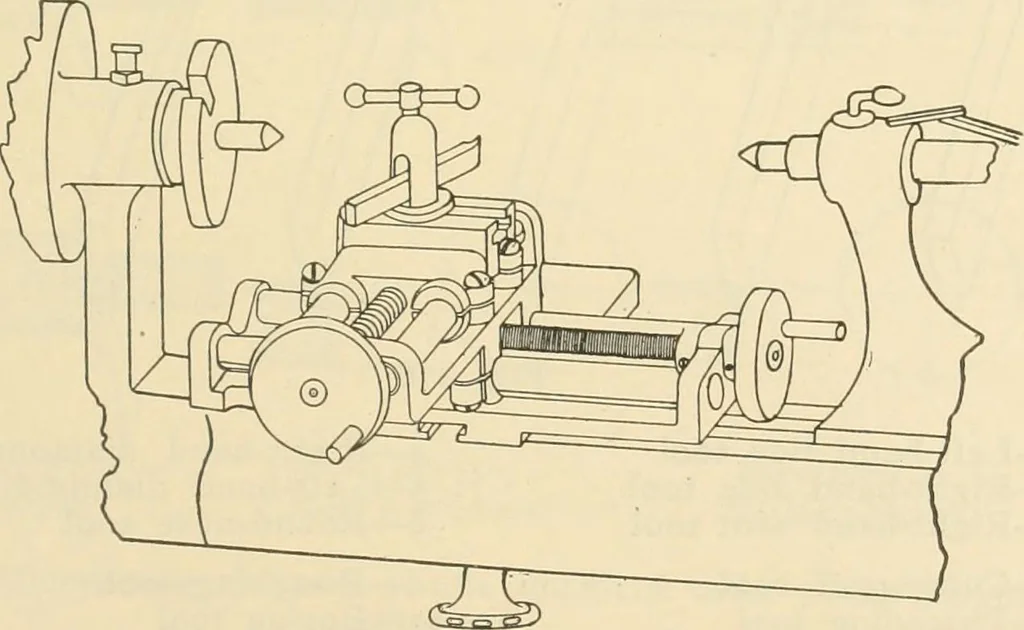

Fig. 174—A drill pad for use in the tail stock of a bench lathe against the surface of the drill pad. The little stud orpin in the drill pad is used to prevent the work from turn-ing or slipping from the grasp of the mechanic.As before stated, it is practically impossible for an … Fig. 175—A slide rest for a bench lathe of popular make amateur to produce accurate work with hand turningtools. To do this a slide rest must be added to the equip-ment of the lathe. A small slide rest manufactured touse on the lathe mentioned in this chapter is illustrated 138 Shop Practice for…
Machine-shop practice · Handicraft
