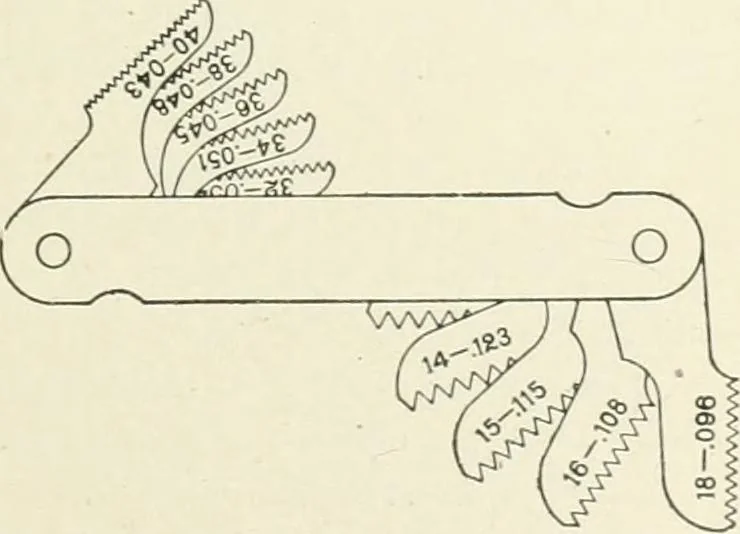

wherean ordinary rule is used and the threads l)et\veen the ineli marksare counted. For thispurpose a pitch gauge,Fig. 155, is iised. Thegauges are short screwsections on thin sheets ofmetal. To ascertain thepitch of any thread, settlie gauges over it suc-cessively until one isfound that exactly… … 104 MACHINE SHOP WORK. travel of the carriage. When a right-lianded screw is to be cut,tlie carriage travels from right to left. For example, if a screwhaving a pitch of i inch, or with four threads to the inch, as it isusually expressed, is to be cvit, the spindle must make four revolu-tions while…
