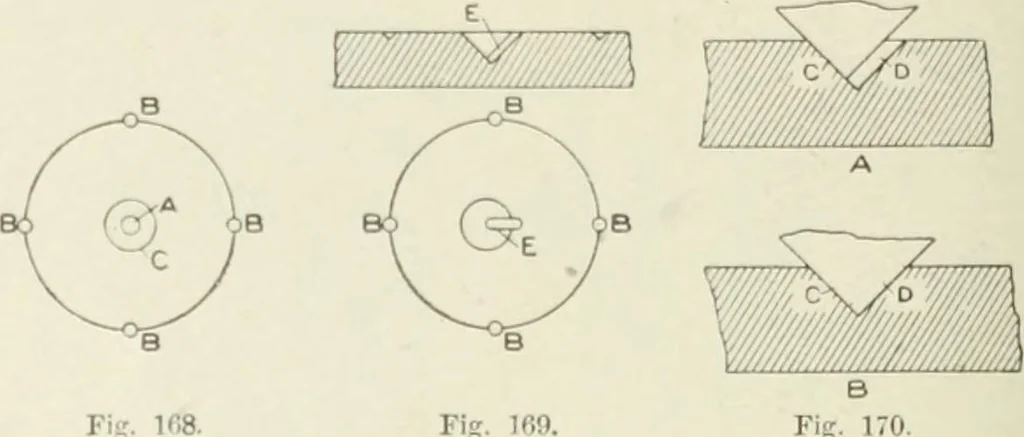

own the side of the counteisink, on the side that isfarthest from the circle BBHB. The depth of this groove dependsupon the amount of eccentricitj- of the countersink and the deptlito wliich it has been drilled. The diill is then run down againand tlie groove drilled ojit. The action of tiiis… … the groove, as shown. The lip then catches on the edge of thegroove and cuts it away, making the hole elli[)tical, and shiftingtlie center of the drill towards its pro[ier position. As the drillsinks deeper both lips are in conttict with the faces C and D, andit has no further tendency to shift.…
