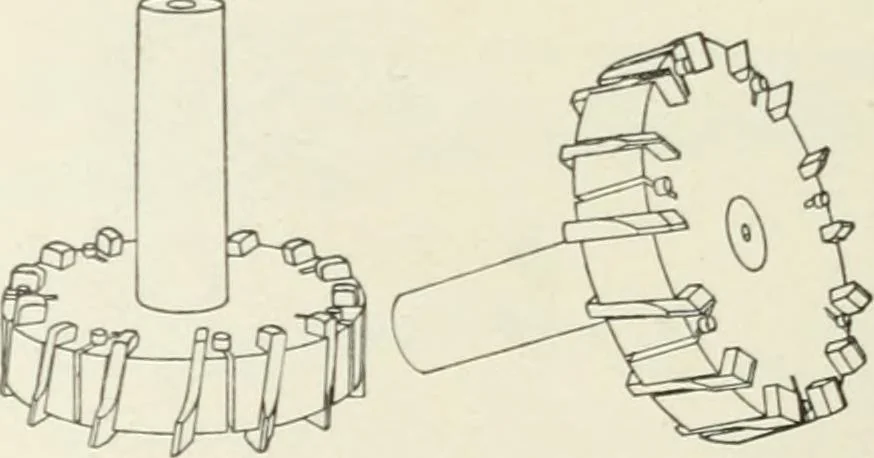

Fis. 202. with a tongue at the end for driving, and washers of varyingthickness, so that cutters of different widths may be used on thearbor, and, to suit the position of the work, in different posi- … Fig. 20.5. tions on the same arbor. The washers and the cutter must haveabsolutely parallel faces. Otherwise, when the nut at the end ofthe arbor is tightened, there will be springing of the arbor due tothe irregularity in thickness. The outboard end of the arbor isprovided with a center or…
