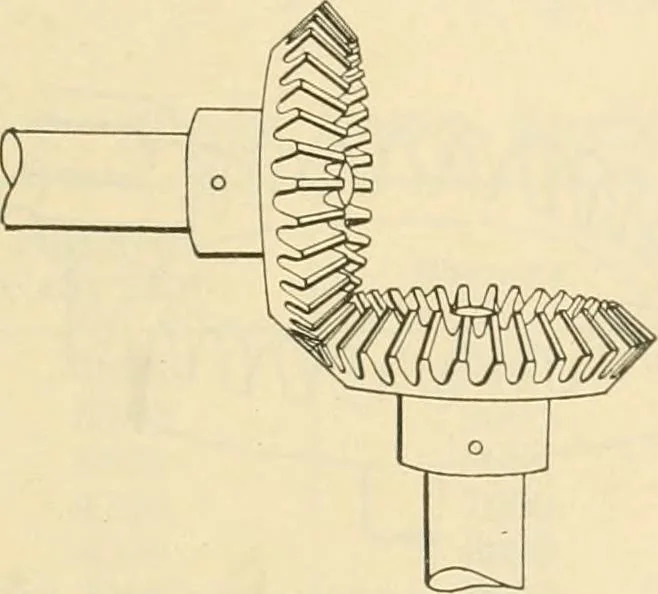

k efficiently and without undue noiseor wear must mesh properly; their axes of rotation mustbe a specific distance apart, depending upon the pitchcircle. The proper position of the teeth of the two gears lutroductiou to Study of Elementary Mechanics 41 is shoAvn in Fig. 35 at A. The improper method… … Fig. 37—Miter gears way) is so mounted that its teeth mesh with the teeth ona straight piece. The straight piece is called a rack.The speed of the rack for a given speed of the pinionwill depend entirely upon the pitch diameter of thepinion.
