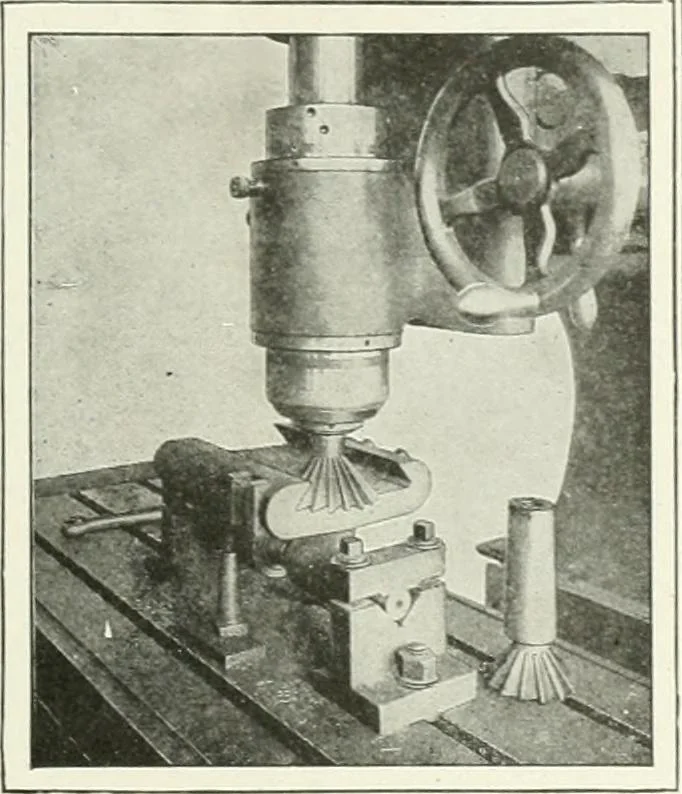

culty, andthe spline cut full depth at one operation. The only objection tothis form of spline is the curve at the end due to the shape ofthe cutter. An end mill in the vertical head can be used toremove this objectionable feature, and some splining machinesare made. Fig. 220, which permanently… … Pig. 221. 181 160 MACHINE SHOP WORK
