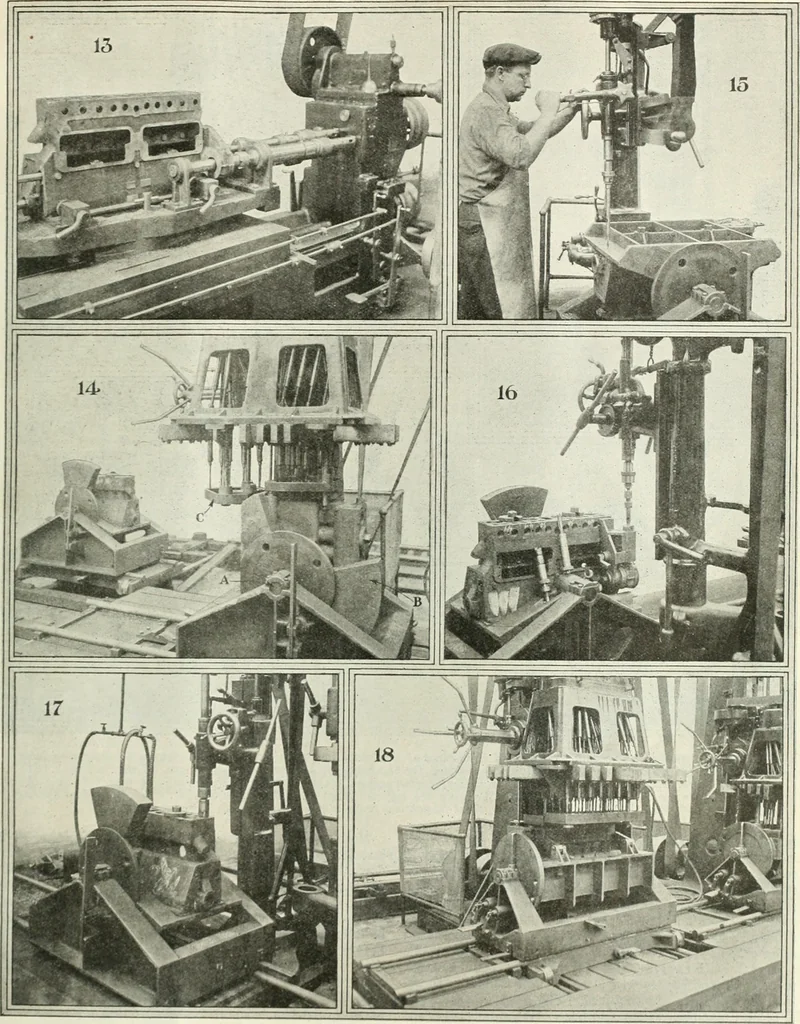

the oil sling slots on a Milwaukee miller with a special support arm and an extra long table. This is astraddle milling operation. (11) Battery of Foote-Burt multiple spindle drills for the valve and valve guide holes.The first two machines are roughing cuts and the third machine shown in the… … II.,) M,,/,,„■ /,.„,„,/ „,»,/.,„, whirl, ,■„,,,,I, /„„•,■* f/ia rnain bearings, the camshaft bearings and water pump supportnotes. (14) Turnover pg operation showing the jig in a Bansh multiple with one set of spindles at work. The jigis then thrown over on the shaft A. assisted by the…
