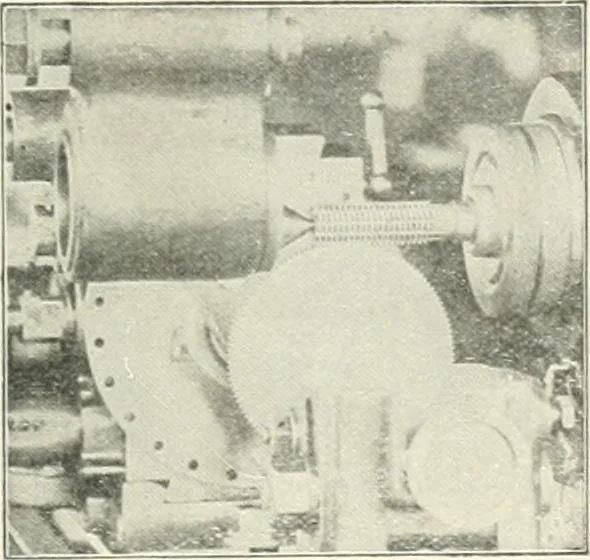

Fig. 229. Fiff. 2.?0. at D. The piu E must, therefore, he moved jl^ of !H) holes, or80 holes, for each tooth cut. Bevel gears are held on an arbor in the dividing head, whichis swung up to bring the bottom of the tooth parallel with thetable, Fig. 229. As all parts of the tooth of a bevel gear are…
