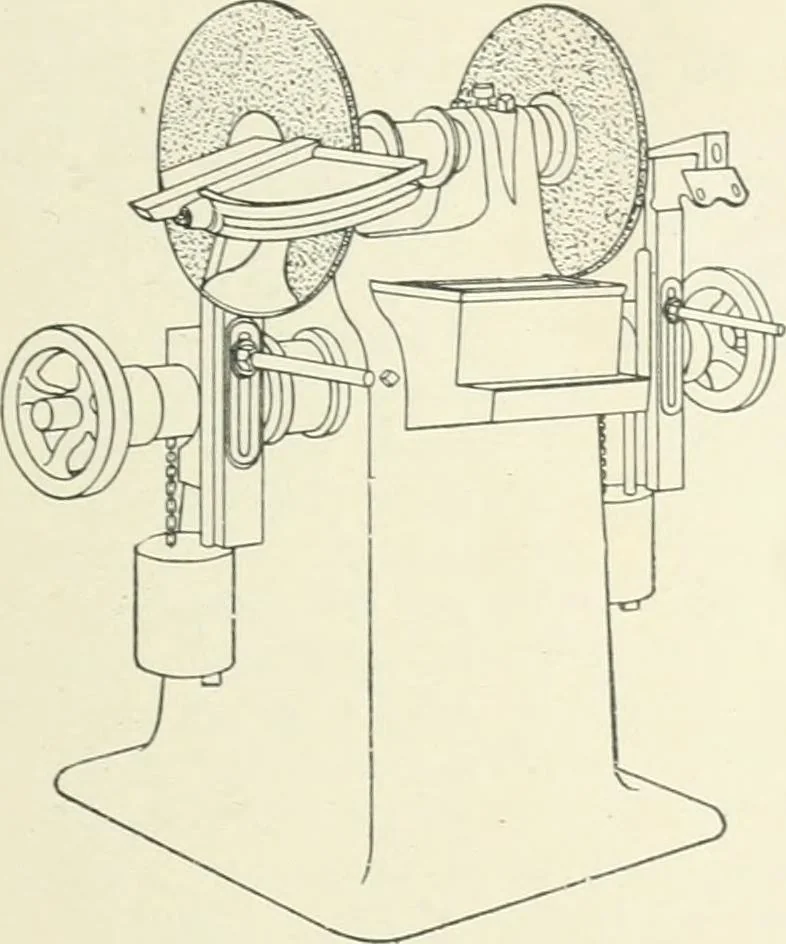

NG TEETH OF LARGE FACE CUTTER. Xnrton Eraery Wheel Co. MACHliSE SHOP WOKK. 171 spindle in the place of the faceplate. The work is then pressedagainst the disk. As the outer edge of tlie disk has a higherspeed in feet traveled per minute than those portions nearer thecenter, the grinding is more… … F.g. 233. Laps for flat sui-faces have grown in favor so rapidly thatsoecial machines have been made to do this work. The construc-tion of the disk grinder can be so readil} seen from the illustration(Fig. 23d), that a detailed description does not seem necessary.For finishing small flat surfaces,…
